8WH10000CN07

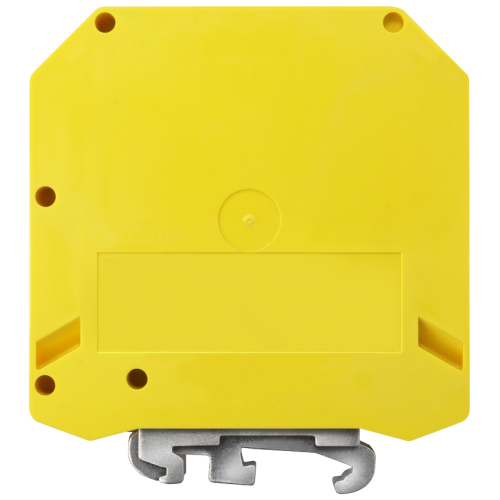

PE terminal with screw terminal, Cross-section: 25-50 mm2, AWG: 6-1/0, Width: 20mm, Color: green-yel

Manufacturer's No: 8WH1000-0CN07     Manufacturer: Siemens
PE terminal with screw terminal, Cross-section: 25-50 mm2, AWG: 6-1/0, Width: 20mm, Color: green-yel

Availability On Request

£39.10
  • Terminal type: Screw terminal
  • Terminal size: 50 mm²
  • Terminal color: Green-yellow
  • Features PE/PEN terminal


Product

Manufacturer Material ID -
8WH1000-0CN07
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
N / N
Minimum Order Quantity -
10
UNSPSC -
39121410

Technical Specification

Length -
70.5 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
20 Millimetre
Height at lowest possible mounting height -
83.5 Millimetre
Connection position -
Above
Material insulation body -
Other
Colour -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
25 Square millimetre
Connectable conductor cross section multi-wired -
25 Square millimetre
Connectable conductor cross section solid-core -
16 Square millimetre
Depth -
75.85 Millimetre
Height -
81.4 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection
Width -
19.95 Millimetre

Availability On Request

£39.10
