8WH10000CQ07

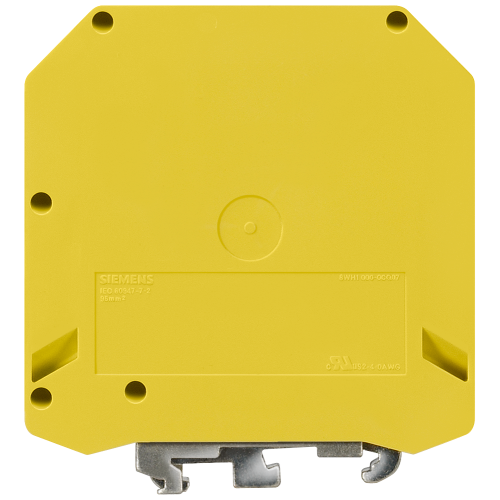

PE terminal with screw terminal, Cross-section: 35-95 mm2, AWG: 2-4/0, Width: 25mm, Color: green-yel

Manufacturer's No: 8WH1000-0CQ07     Manufacturer: Siemens
PE terminal with screw terminal, Cross-section: 35-95 mm2, AWG: 2-4/0, Width: 25mm, Color: green-yel

Availability On Request

£45.29
  • Terminal type: Screw terminal
  • Terminal size: 95 mm²
  • Color: Green-yellow
  • Additional terminal type: PE/PEN terminal


Product

Manufacturer Material ID -
8WH1000-0CQ07
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
N / N
Minimum Order Quantity -
10
UNSPSC -
39121410

Technical Specification

Length -
83 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
25 Millimetre
Height at lowest possible mounting height -
96.5 Millimetre
Connection position -
Sideways
Colour -
Green/yellow
Material insulation body -
Thermoplastic
Connectable conductor cross section fine-strand with cable end sleeve -
35 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
35 Square millimetre
Connectable conductor cross section multi-wired -
95 Square millimetre
Connectable conductor cross section solid-core -
25 Square millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
1
Number of levels -
2
Operating temperature -
-60 Degrees celsius
PEN function possible -
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection

Availability On Request

£45.29
