8WH10200AF00

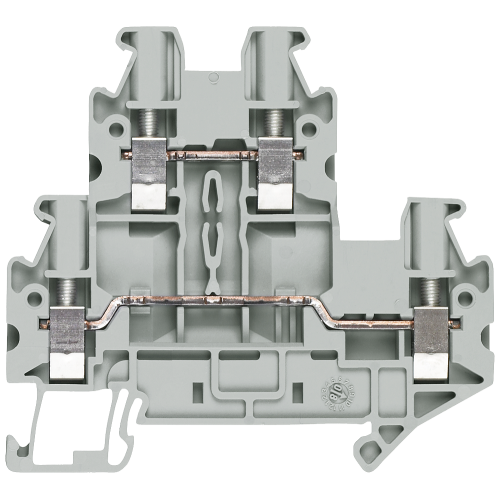

Two-tier terminals with screw terminal Terminal size 2.5 mm2 Terminal width 5.2 mm Color gray

Manufacturer's No: 8WH1020-0AF00     Manufacturer: Siemens
Two-tier terminals with screw terminal Terminal size 2.5 mm2 Terminal width 5.2 mm Color gray

Availability On Request

£3.95
  • Terminal type: Screw terminal
  • Design: Two-tier through-type
  • Wire size: 2.5 mm²
  • Color: Gray


Product

Manufacturer Material ID -
8WH1020-0AF00
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Length -
69.9 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
5.2 Millimetre
Height at lowest possible mounting height -
65 Millimetre
Connection position -
Sideways
Material insulation body -
Other
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Connectable conductor cross section solid-core -
0.14 Square millimetre
Depth -
64.3 Millimetre
Explosion-tested version 'Ex e' -
Height -
69.9 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
2
Operating temperature -
-60 Degrees celsius
Rated current In -
24 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection

Availability On Request

£3.95
