8WH10200CG07

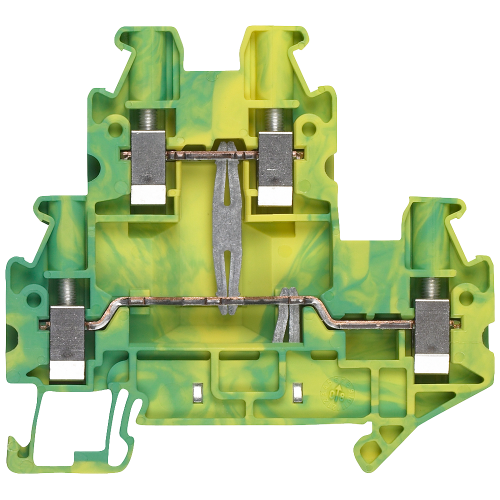

PE two-tier terminal with screw connection, terminal size 4.0 mm2 terminal width

Manufacturer's No: 8WH1020-0CG07     Manufacturer: Siemens
PE two-tier terminal with screw connection, terminal size 4.0 mm2 terminal width

Availability On Request

£16.95
  • Terminal type: Screw terminal
  • Two-tier design
  • PE/PEN terminal
  • Wire size: 4 mm²
  • Color: Green-yellow


Product

Manufacturer Material ID -
8WH1020-0CG07
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

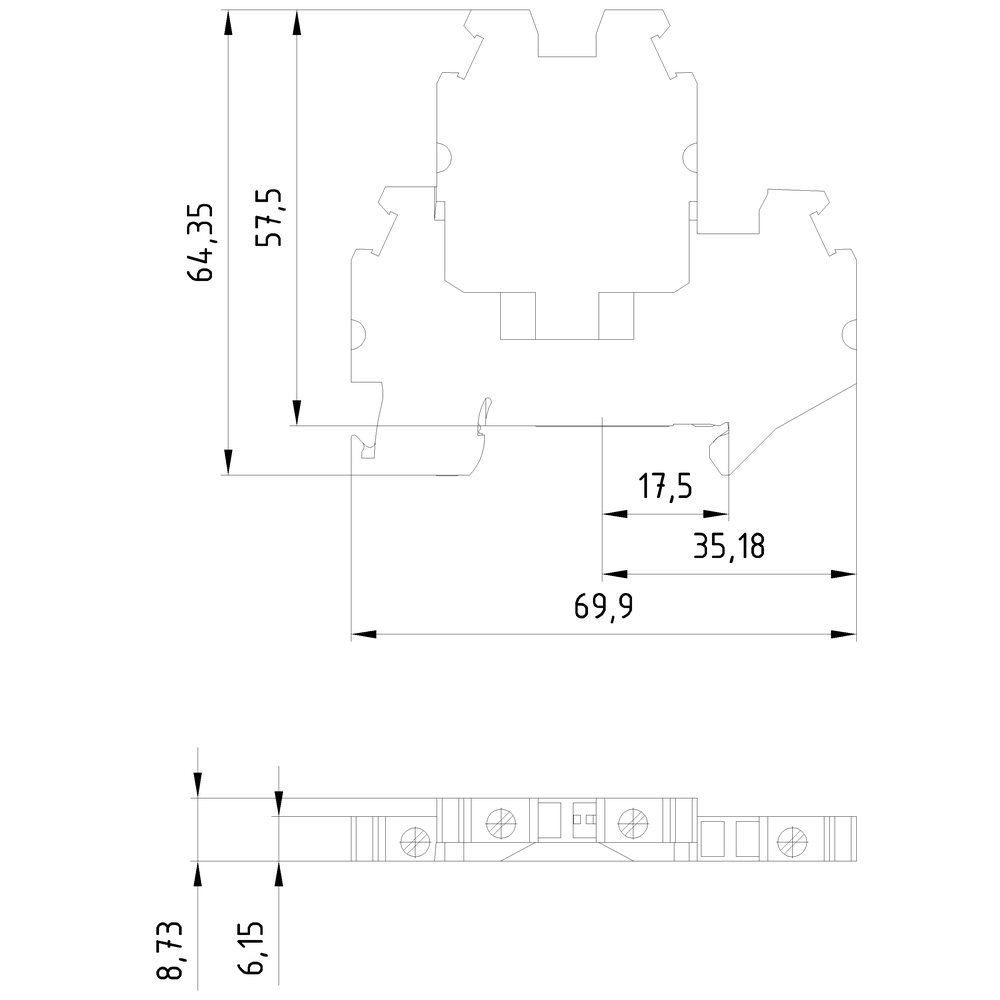

Technical Specification

Length -
69.9 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
6.2 Millimetre
Height at lowest possible mounting height -
65 Millimetre
Material insulation body -
Thermoplastic
Connection position -
Sideways
Closing plate required -
Colour -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Connectable conductor cross section solid-core -
0.14 Square millimetre
Depth -
64.45 Millimetre
Height -
69.9 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
4
Number of levels -
2
Operating temperature -
105 Degrees celsius
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection
Width -
8.72 Millimetre
