8WH10250AG00

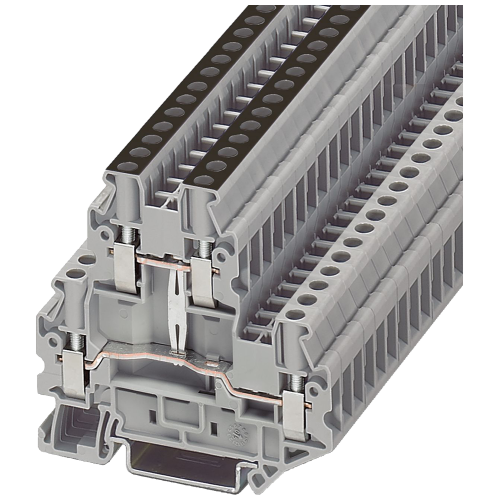

Two-tier terminal with screw connection, terminal size 4.0 mm2 terminal width 6.2 mm

Manufacturer's No: 8WH1025-0AG00     Manufacturer: Siemens
Two-tier terminal with screw connection, terminal size 4.0 mm2 terminal width 6.2 mm

Availability On Request

£10.14
  • Terminal type: Screw terminal
  • Two-tier design for equipotential bonding
  • Through-type terminal
  • Wire size: 4 mm²
  • Color: Gray

cover Terminal size 2.5/4.0 mm2 Color gray

Product Code - 8WH90001QA00
Price £1.83
On Request


Product

Manufacturer Material ID -
8WH1025-0AG00
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Length -
69.9 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
5.2 Millimetre
Height at lowest possible mounting height -
65 Millimetre
Material insulation body -
Thermoplastic
Connection position -
Sideways
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Connectable conductor cross section solid-core -
0.14 Square millimetre
Depth -
64.3 Millimetre
Explosion-tested version 'Ex e' -
Height -
69.9 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Internally connected stages -
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
2
Operating temperature -
-60 Degrees celsius
Rated current In -
30 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection

Availability On Request

£10.14
