8WH12010AK01

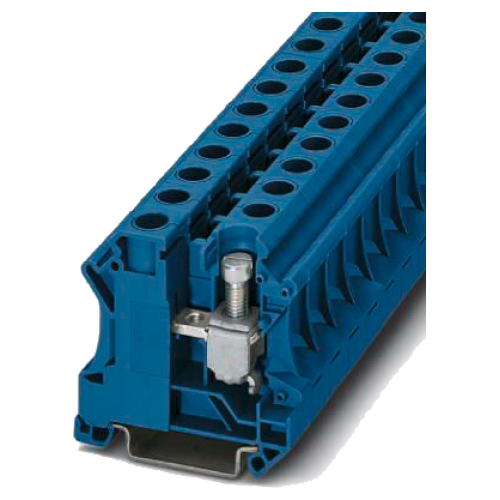

Terminal block for installation terminal, conductor cross-section 16 mm2 color blue

Manufacturer's No: 8WH1201-0AK01     Manufacturer: Siemens
Terminal block for installation terminal, conductor cross-section 16 mm2 color blue

Availability On Request

£5.74
  • Terminal type: Screw terminal
  • Installation type: Through-type terminal
  • Wire size: 16 mm²
  • Color: Blue


Product

Manufacturer Material ID -
8WH1201-0AK01
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39122233

Technical Specification

Basic colour -
Blue
Closing plate required -
Connectable conductor cross section fine-strand with cable end sleeve -
6 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
6 Square millimetre
Connectable conductor cross section multi-wired -
2.5 Square millimetre
Connectable conductor cross section solid-core -
6 Square millimetre
Depth -
50 Millimetre
Height -
50.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V2
Mounting method -
DIN rail (top hat rail) 35 mm
N function possible -
Number of potentials -
2
Operating temperature -
-60 Degrees celsius
Rated current In -
75 Ampere
Rated voltage -
400 Volt
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection
Width -
12.2 Millimetre

Availability On Request

£5.74
