8WH12010BM01

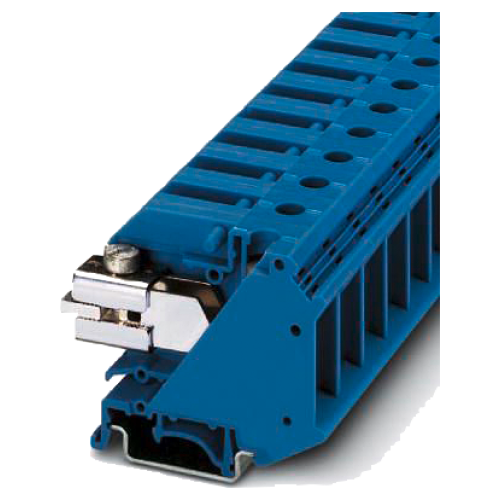

N conductor isolating terminal for installation terminal, conductor cross-section 35 mm2 color blue

Manufacturer's No: 8WH1201-0BM01     Manufacturer: Siemens
N conductor isolating terminal for installation terminal, conductor cross-section 35 mm2 color blue

Availability On Request

£14.50
  • Terminal type: Screw terminal
  • Installation type: N conductor isolating terminal
  • Maximum conductor size: 35 mm²
  • Color: Blue


Product

Manufacturer Material ID -
8WH1201-0BM01
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121410

Technical Specification

Colour -
Blue
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Connecting plate required -
Depth -
15 Millimetre
Height -
50 Millimetre
Inflammability class of insulation material acc. with UL94 -
V2
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions -
2
Operating temperature -
-60 Degrees celsius
Rated current In -
110 Ampere
Rated voltage -
400 Volt
Suitable for N-busbar -
3x10 mm
Type of electric connection -
Screw connection
Width -
55 Millimetre

Availability On Request

£14.50
