8WH12010CM07

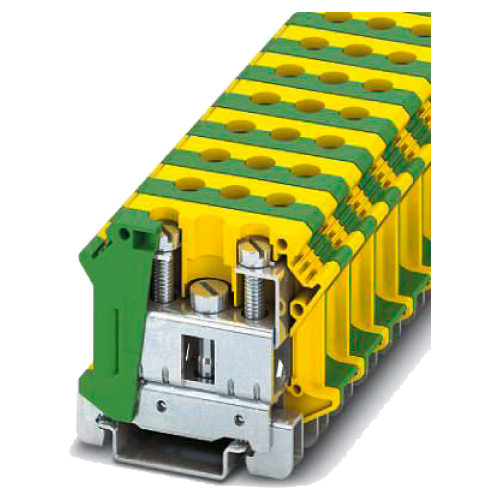

PE terminal block for installation terminal, conductor cross-section 35 mm2 color yellow

Manufacturer's No: 8WH1201-0CM07     Manufacturer: Siemens
PE terminal block for installation terminal, conductor cross-section 35 mm2 color yellow

Availability On Request

£19.82
  • Terminal type: Screw terminal
  • Installation terminal for PE/PEN
  • Terminal size: 35 mm²
  • Color: Green-yellow


Product

Manufacturer Material ID -
8WH1201-0CM07
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121601

Technical Specification

Closing plate required -
Connectable conductor cross section fine-strand with cable end sleeve -
0.8 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre

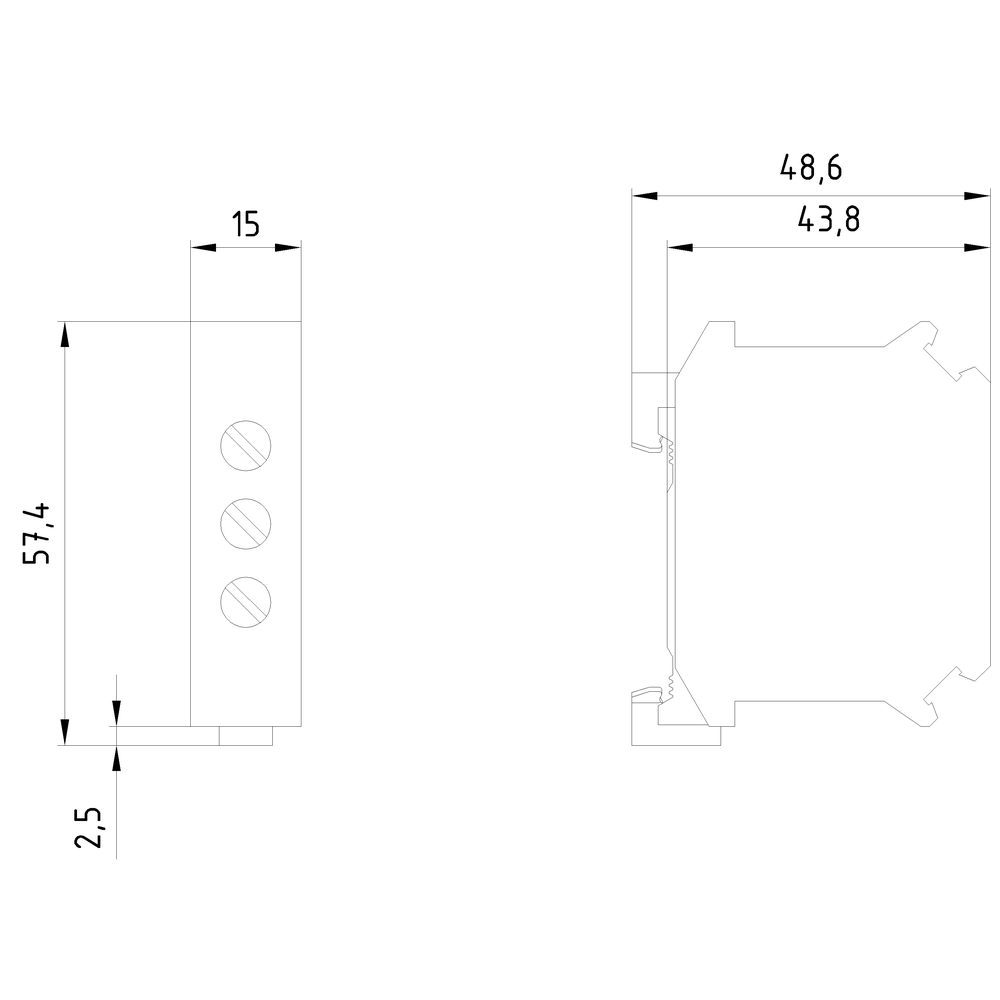

Depth -
15 Millimetre
Height -
48.6 Millimetre
Inflammability class of insulation material acc. with UL94 -
V2
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection
Width -
58 Millimetre

Availability On Request

£19.82
