8WH20000AF05

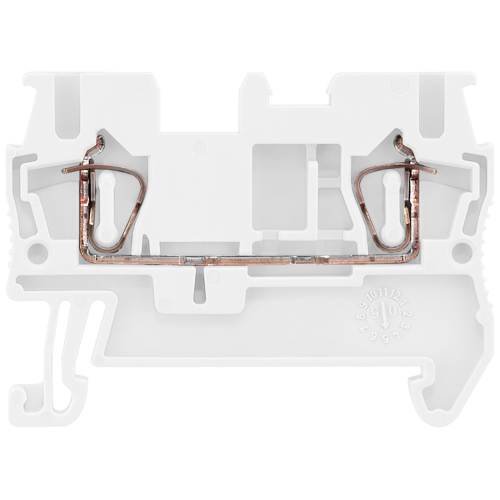

Through-type terminal with spring-loaded connection, cross-section: 2.5 mm2, width: 5.2 mm

Manufacturer's No: 8WH2000-0AF05     Manufacturer: Siemens
Through-type terminal with spring-loaded connection, cross-section: 2.5 mm2, width: 5.2 mm

Availability On Request

£2.04
  • Terminal type: Spring-loaded through-type
  • Wire size: 2.5 mm²
  • Color: White
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2000-0AF05
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Operation temperature -
-25 Degrees celsius
Width/grid dimension -
5.2 Millimetre
Connectable conductor cross section multi-wired -
4 Square millimetre
Connection position -
Above
Closing plate required -
Colour -
White
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
35.3 Millimetre
Explosion-tested version 'Ex e' -
Height -
48.63 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
24 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection

Availability On Request

£2.04
