8WH20000AG03

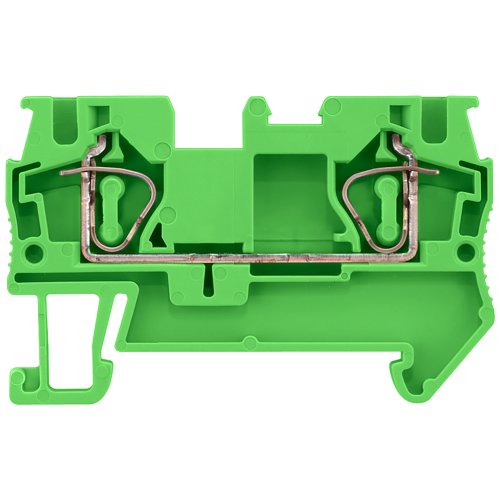

Through-type terminal with spring-loaded connection, cross-section: 4 mm2, width: 6.2 mm

Manufacturer's No: 8WH2000-0AG03     Manufacturer: Siemens
Through-type terminal with spring-loaded connection, cross-section: 4 mm2, width: 6.2 mm

Availability On Request

£2.11
  • Terminal type: Through-type spring-loaded terminal
  • Wire size: 4 mm²
  • Color: Green
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2000-0AG03
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Operation temperature -
-25 Degrees celsius
Width/grid dimension -
6.2 Millimetre
Connectable conductor cross section multi-wired -
6 Square millimetre
Connection position -
Above
Closing plate required -
Colour -
Green
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
35.3 Millimetre
Explosion-tested version 'Ex e' -
Height -
55.93 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
32 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
