8WH20000AM01

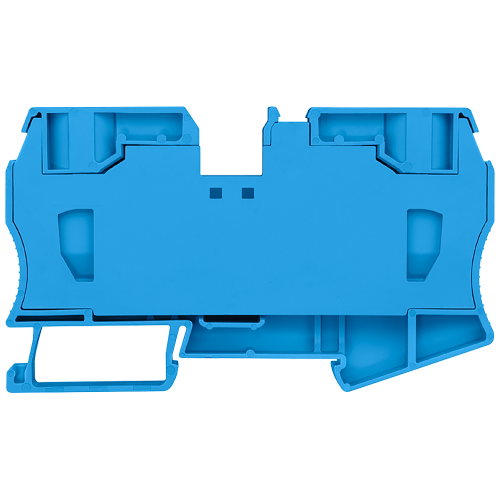

Through-type terminals with spring-loaded connection, cross-section: 2.5-35 mm2, width: 16 mm

Manufacturer's No: 8WH2000-0AM01     Manufacturer: Siemens
Through-type terminals with spring-loaded connection, cross-section: 2.5-35 mm2, width: 16 mm

Availability On Request

£20.28
  • Terminal type: Through-type spring-loaded terminal
  • Wire capacity: 35 mm²
  • Color: Blue
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2000-0AM01
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Colour -
Blue
Connectable conductor cross section fine-strand with cable end sleeve -
2.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
2.5 Square millimetre
Connectable conductor cross section solid-core -
2.5 Square millimetre
Depth -
58.5 Millimetre
Explosion-tested version 'Ex e' -
Height -
99.9 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
125 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection

Availability On Request

£20.28
