8WH20001BG28

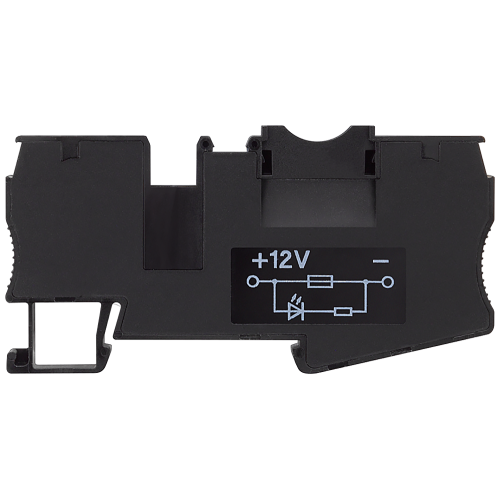

Fuse terminal with illuminated display, 12 V DC with 4 mm2 spring-loaded connection

Manufacturer's No: 8WH2000-1BG28     Manufacturer: Siemens
Fuse terminal with illuminated display, 12 V DC with 4 mm2 spring-loaded connection

Availability On Request

£26.84
  • Terminal type: Spring-loaded
  • Fuse terminal with LED indicator
  • Wire size capacity: 4 mm²
  • Color: Black
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2000-1BG28
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Length -
86.5 Millimetre
Width/grid dimension -
8.2 Millimetre
Height at lowest possible mounting height -
43.5 Millimetre
Type of electrical connection 2 -
Spring clamp connection
Voltage type for defect indication -
AC/DC
Connectable conductor cross section multi-wired -
6 Square millimetre
Connection position -
Above
Colour -
Black
Connectable conductor cross section fine-strand with cable end sleeve -
4 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
44.05 Millimetre
Height -
86.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
30 Ampere
Rated voltage -
400 Volt
Supply voltage for defect-indication -
12 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of fuse holder -
Pluggable
Type of fuse insert -
Blade fuse
Type of indication element for defect indication -
LED
Width -
8.15 Millimetre

Availability On Request

£26.84
