8WH20001GG08

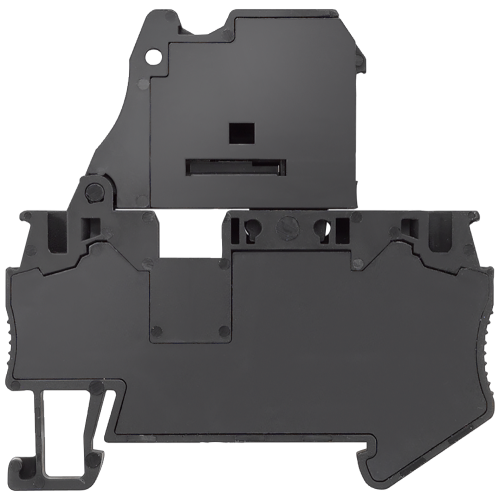

Fuse terminal for G fuse links 5x 20, 5x 25 and 5x 30 with 4 mm2 spring-loaded connection, Width: 6.

Manufacturer's No: 8WH2000-1GG08     Manufacturer: Siemens
Fuse terminal for G fuse links 5x 20, 5x 25 and 5x 30 with 4 mm2 spring-loaded connection, Width: 6.

Availability On Request

£4.50
  • Terminal type: Spring-loaded
  • Fuse compatibility: G fuse
  • Wire size: 4 mm²
  • Color: Black
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2000-1GG08
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
N / N
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Operation temperature -
- Degrees celsius
Supply voltage for defect-indication -
- Volt
Length -
61.5 Millimetre
Width/grid dimension -
6.2 Millimetre
Height at lowest possible mounting height -
62.5 Millimetre
Connection position -
Above
Type of electrical connection 2 -
Spring clamp connection
Voltage type for defect indication -
AC/DC
Connectable conductor cross section multi-wired -
6 Square millimetre
Colour -
Black
Connectable conductor cross section fine-strand with cable end sleeve -
4 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
63.38 Millimetre
Height -
61.53 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
6.3 Ampere
Rated voltage -
250 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of fuse holder -
Swivelling
Type of fuse insert -
G-fuse 5x20 mm
Type of indication element for defect indication -
None
Width -
6.15 Millimetre

Availability On Request

£4.50
