8WH20030AH00

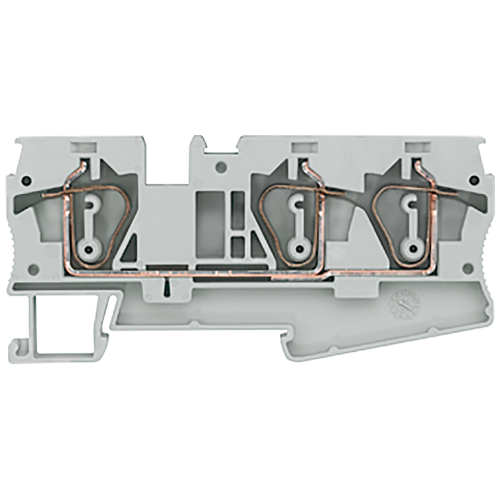

Through-type terminals with spring-loaded connection, 3 connection points, Cross-section: 0.5-6 mm2, Width: 8.2mm, Color: gray

Manufacturer's No: 8WH2003-0AH00     Manufacturer: Siemens
Through-type terminals with spring-loaded connection, 3 connection points, Cross-section: 0.5-6 mm2, Width: 8.2mm, Color: gray

Availability On Request

£5.59
  • Terminal type: Spring-loaded
  • Clamping points: 3
  • Through-type terminal
  • Wire size: 6 mm²
  • Color: Gray
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2003-0AH00
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Operation temperature -
-25 Degrees celsius
Width/grid dimension -
8.2 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.2 Square millimetre
Depth -
42.2 Millimetre
Explosion-tested version 'Ex e' -
Height -
90.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
3
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
41 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection

Availability On Request

£5.59
