8WH20030CE07

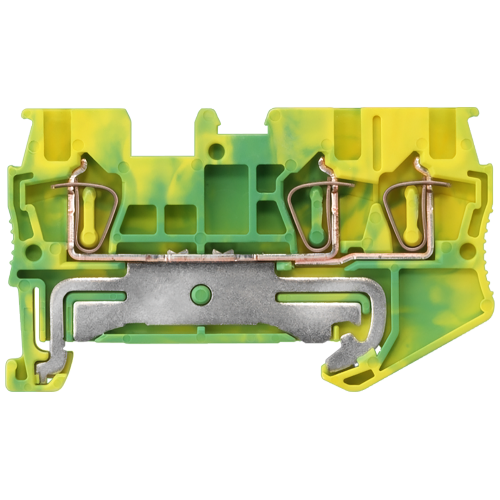

PE terminal with spring-loaded connection, 3 terminals

Manufacturer's No: 8WH2003-0CE07     Manufacturer: Siemens
PE terminal with spring-loaded connection, 3 terminals

Availability On Request

£6.74
  • Terminal type: Spring-loaded
  • Clamping points: 3
  • Terminal compatibility: PE/PEN
  • Wire size: 1.5 mm²
  • Color: Green-yellow
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2003-0CE07
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

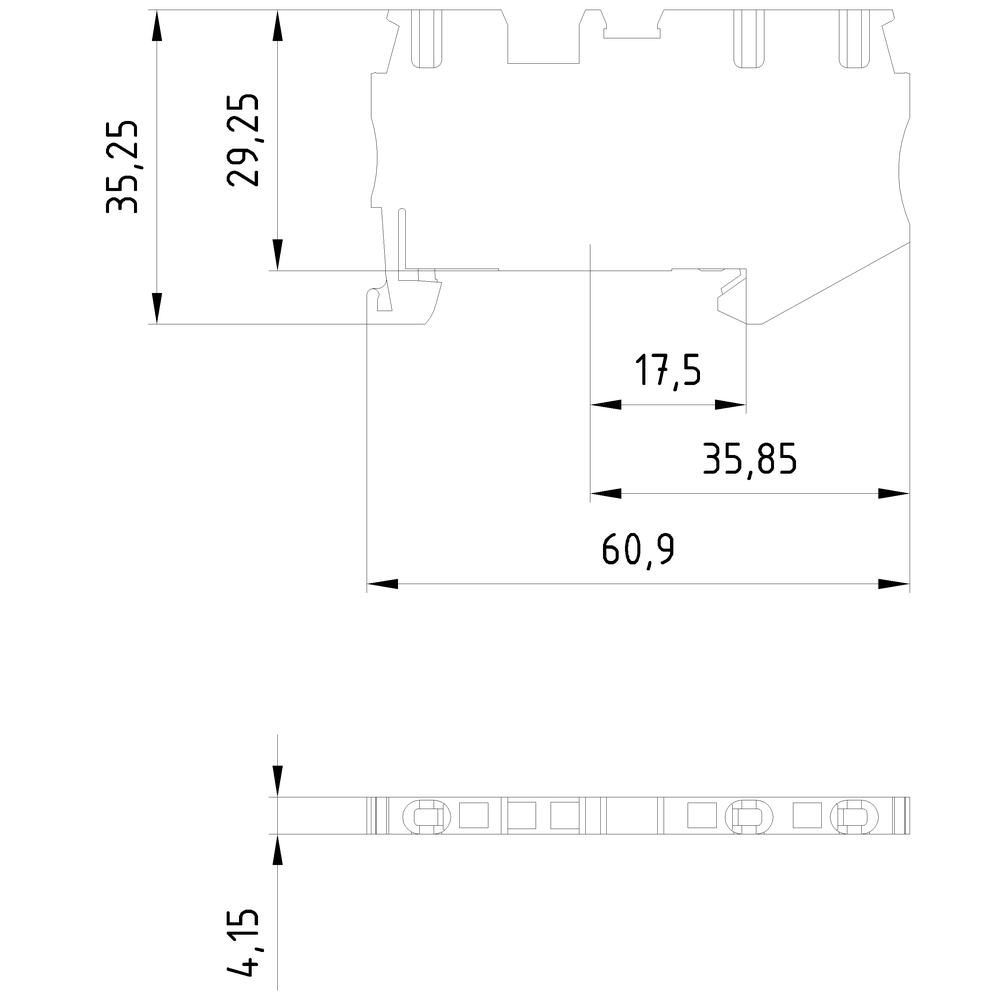

Technical Specification

Length -
60.5 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
4.2 Millimetre
Height at lowest possible mounting height -
43.5 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
35.25 Millimetre
Height -
60.93 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
3
Number of levels -
1
Operating temperature -
105 Degrees celsius
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
4.15 Millimetre

Availability On Request

£6.74
