8WH20035DF00

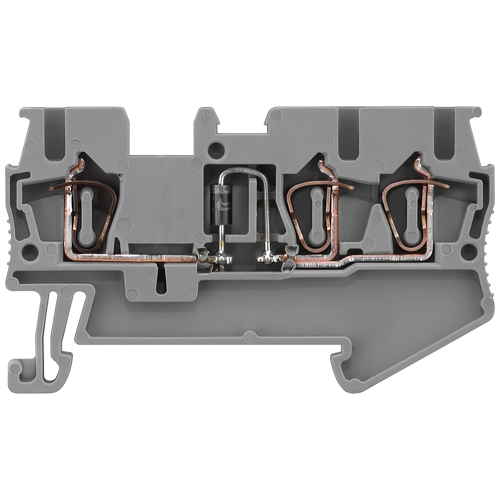

Diode terminal, with spring-loaded connection, 3 clamping points let-through from left to

Manufacturer's No: 8WH2003-5DF00     Manufacturer: Siemens
Diode terminal, with spring-loaded connection, 3 clamping points let-through from left to

Availability On Request

£8.75
  • Terminal with spring-loaded feature
  • 3 clamping points for secure connections
  • Diode terminal designed for 2.5 mm² wires
  • Color: Gray
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2003-5DF00
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

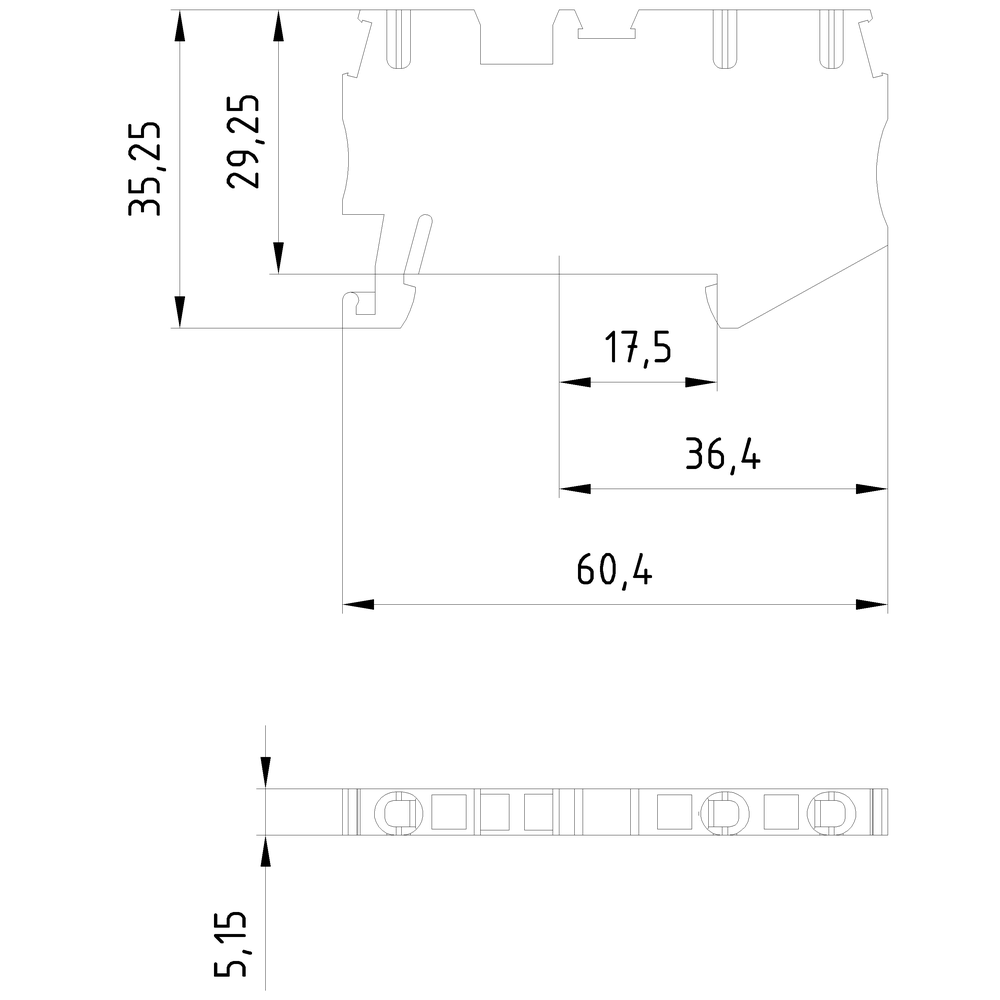

Technical Specification

Length -
60.5 Millimetre
Width/grid dimension -
5.5 Millimetre
Height at lowest possible mounting height -
60.5 Millimetre
Type of electrical connection 2 -
Flat plug-in connection
Connectable conductor cross section multi-wired -
4 Square millimetre
Material insulation body -
Other
Connection position -
Above
Rated current In -
1 Ampere
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
35.3 Millimetre
Height -
60.43 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
3
Number of levels -
1
Operating temperature -
-165 Degrees celsius
Rated voltage -
800 Volt
Type of component -
Diode
Type of electrical connection 1 -
Spring clamp connection
Width -
5.15 Millimetre

Availability On Request

£8.75
