8WH20040AG00

Through-type terminals with spring-loaded connection, 4 connection points, Cross-section: 0.5-4 mm2, Width: 6.2mm, Color: gray

Manufacturer's No: 8WH2004-0AG00     Manufacturer: Siemens
Through-type terminals with spring-loaded connection, 4 connection points, Cross-section: 0.5-4 mm2, Width: 6.2mm, Color: gray

Availability On Request

£3.73
  • Spring-loaded terminal with 4 clamping points
  • Through-type terminal design
  • Terminal size: 4 mm²
  • Color: Gray
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2004-0AG00
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Operation temperature -
-25 Degrees celsius
Width/grid dimension -
6.2 Millimetre
Connection position -
Above
Connectable conductor cross section multi-wired -
6 Square millimetre
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre

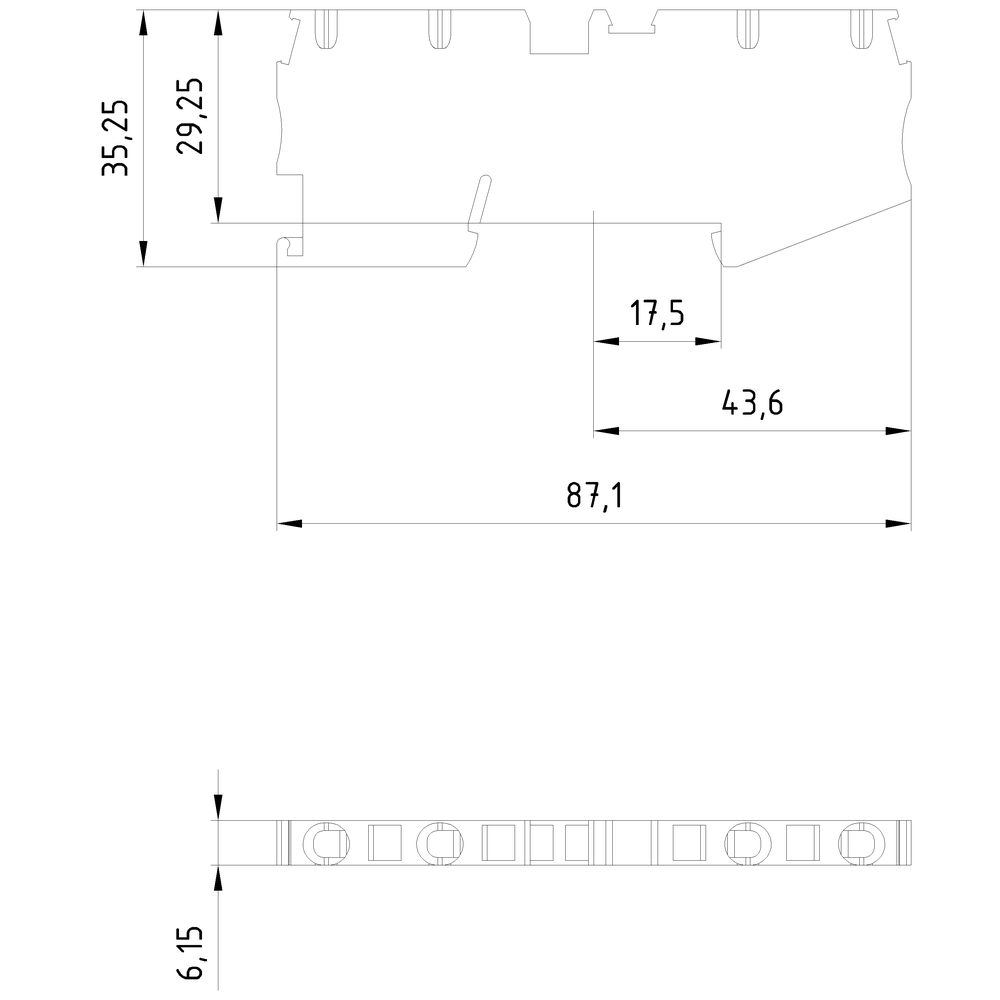

Depth -
35.3 Millimetre
Explosion-tested version 'Ex e' -
Height -
87.13 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
4
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
32 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection

Availability On Request

£3.73
