8WH20046AF00

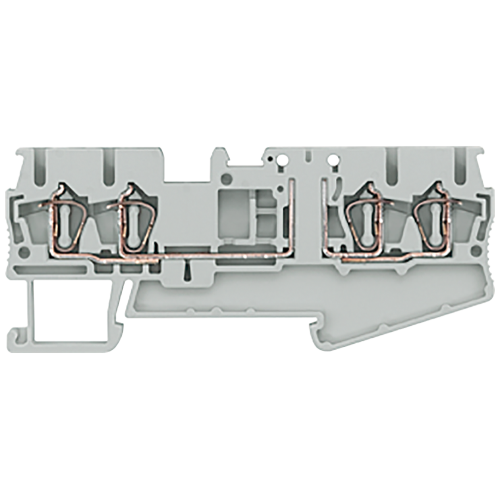

Isolating terminal for isolating plug with spring-loaded connection, 4 terminals

Manufacturer's No: 8WH2004-6AF00     Manufacturer: Siemens
Isolating terminal for isolating plug with spring-loaded connection, 4 terminals

Availability On Request

£5.65
  • Terminal with spring-loaded feature
  • 4 clamping points for secure connections
  • Isolating terminal for safety
  • Accommodates wires up to 2.5 mm²
  • Color: gray
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2004-6AF00
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Length -
84 Millimetre
Width/grid dimension -
5.5 Millimetre
Height at lowest possible mounting height -
36.5 Millimetre
Type of electrical connection 2 -
Spring clamp connection
Connectable conductor cross section multi-wired -
0.25 Square millimetre
Connection position -
Above
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
36.5 Millimetre
Height -
84.03 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
4
Number of levels -
1
Operating temperature -
-105 Degrees celsius
Rated current In -
20 Ampere
Rated voltage -
400 Volt
Type of cross disconnection -
None
Type of electrical connection 1 -
Spring clamp connection
Type of slitting -
Other
Width -
5.15 Millimetre

Availability On Request

£5.65
