8WH20200AF01

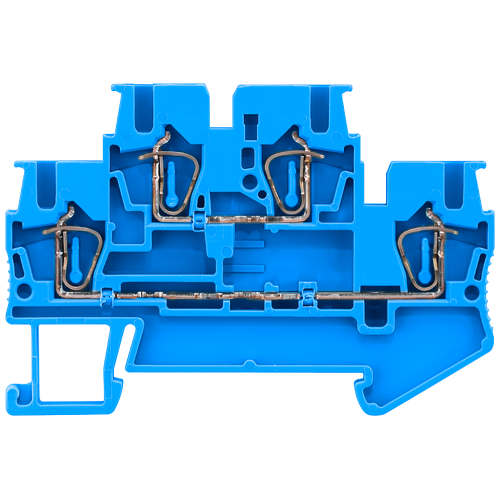

Two-tier terminal with spring-loaded connection, cross-section: 0.08-2.5 mm2, width: 5.2 mm

Manufacturer's No: 8WH2020-0AF01     Manufacturer: Siemens
Two-tier terminal with spring-loaded connection, cross-section: 0.08-2.5 mm2, width: 5.2 mm

Availability On Request

£3.12
  • Terminal type: Spring-loaded
  • Connection type: Two-tier through-type
  • Wire size: 2.5 mm²
  • Color: Blue
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2020-0AF01
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Closing plate required -
Colour -
Blue
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
45.9 Millimetre
Explosion-tested version 'Ex e' -
Height -
67.58 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
2
Operating temperature -
-60 Degrees celsius
Rated current In -
22 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection

Availability On Request

£3.12
