8WH20205DF00

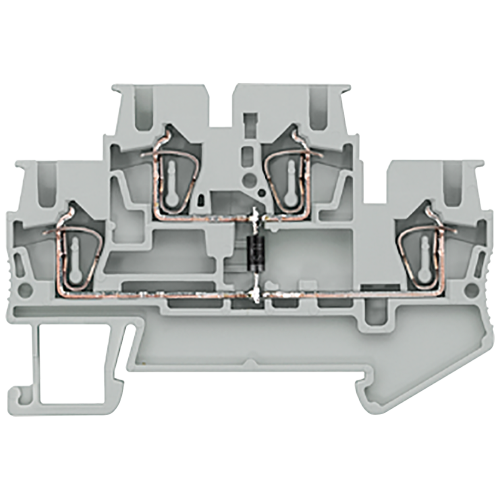

Doppelstock-Diodenklemme Durchlass von unten/links nach und RE.

Manufacturer's No: 8WH2020-5DF00     Manufacturer: Siemens
Doppelstock-Diodenklemme Durchlass von unten/links nach und RE.

Availability On Request

£10.74
  • Terminal type: Spring-loaded
  • Two-tier design
  • Diode terminal included
  • Wire size: 2.5 mm²
  • Color: Gray
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2020-5DF00
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Length -
67.5 Millimetre
Width/grid dimension -
5.2 Millimetre
Height at lowest possible mounting height -
47.5 Millimetre
Type of electrical connection 2 -
Flat plug-in connection
Connectable conductor cross section multi-wired -
4 Square millimetre
Material insulation body -
Other
Connection position -
Above
Rated current In -
26 Ampere
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
45.9 Millimetre
Height -
67.58 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
4
Number of levels -
2
Operating temperature -
-165 Degrees celsius
Rated voltage -
500 Volt
Type of component -
Diode
Type of electrical connection 1 -
Spring clamp connection
Width -
5.15 Millimetre

Availability On Request

£10.74
