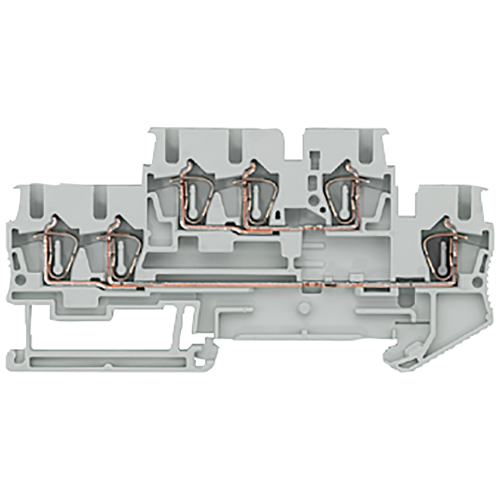

8WH20230AF00

Two-tier terminal with spring-loaded connection, 3 terminals

Manufacturer's No: 8WH2023-0AF00     Manufacturer: Siemens
Two-tier terminal with spring-loaded connection, 3 terminals

Availability On Request

£7.92
  • Terminal type: Spring-loaded two-tier through-type
  • Clamping points: 3
  • Wire size: 2.5 mm²
  • Color: Gray
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2023-0AF00
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Length -
91.5 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
5.2 Millimetre
Height at lowest possible mounting height -
47.5 Millimetre
Connectable conductor cross section multi-wired -
4 Square millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
45.9 Millimetre
Explosion-tested version 'Ex e' -
Height -
91.18 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
3
Number of levels -
2
Operating temperature -
-60 Degrees celsius
Rated current In -
22 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection

Availability On Request

£7.92
