8WH20230CF07

Two-tier PE terminal with spring-loaded connection, 3 terminals

Manufacturer's No: 8WH2023-0CF07     Manufacturer: Siemens
Two-tier PE terminal with spring-loaded connection, 3 terminals

Availability On Request

£15.40
  • Terminal type: Spring-loaded
  • Configuration: Two-tier with 3 clamping points
  • Conductor size: 2.5 mm²
  • Terminal color: Green-yellow
  • Suitable for PE/PEN connections
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2023-0CF07
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

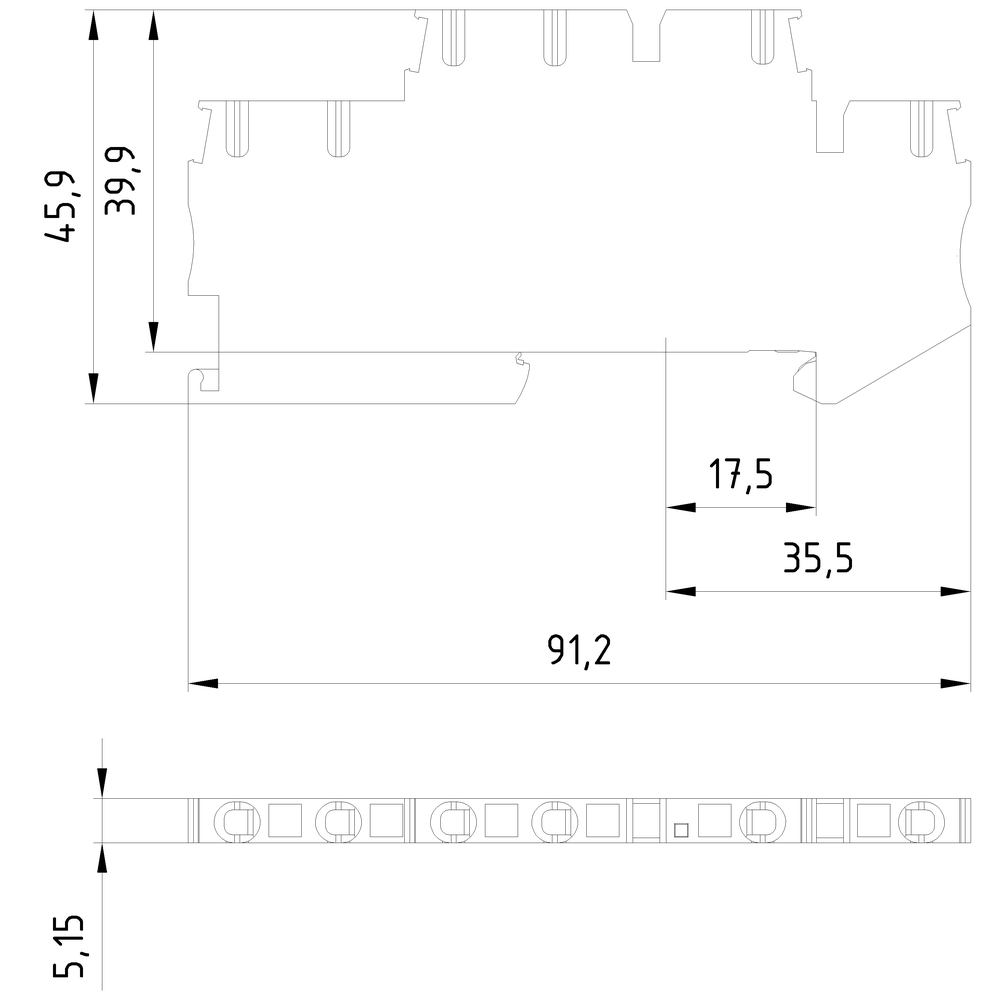

Technical Specification

Length -
91.5 Millimetre
Operation temperature -
-25 Degrees celsius
Height at lowest possible mounting height -
47.5 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
45.85 Millimetre
Height -
91.18 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
3
Number of levels -
2
Operating temperature -
105 Degrees celsius
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
5.15 Millimetre

Availability On Request

£15.40
