8WH20250AE00

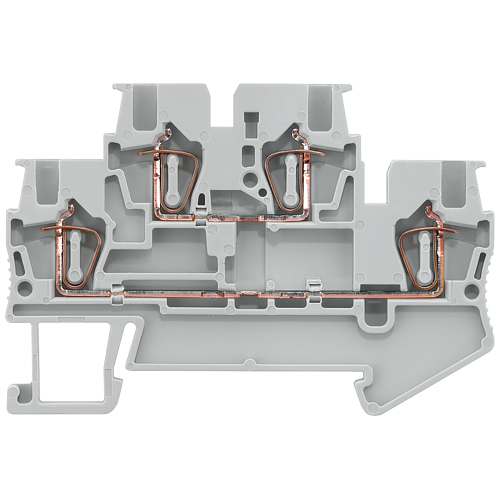

Two-tier terminals Potential connected, Cross-section: 0.14-1.5 mm2, Width: 4.2mm, Color: gray

Manufacturer's No: 8WH2025-0AE00     Manufacturer: Siemens
Two-tier terminals Potential connected, Cross-section: 0.14-1.5 mm2, Width: 4.2mm, Color: gray

Availability On Request

£4.15
  • Spring-loaded terminal for secure connections
  • Two-tier design for efficient wiring
  • Through-type terminal for easy installation
  • Suitable for 1.5 mm² wires
  • Gray color for easy identification
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2025-0AE00
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Length -
67.5 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
4.2 Millimetre
Height at lowest possible mounting height -
47.5 Millimetre
Connection position -
Above
Connectable conductor cross section multi-wired -
1.5 Square millimetre
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
45.9 Millimetre
Explosion-tested version 'Ex e' -
Height -
67.58 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Internally connected stages -
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
2
Operating temperature -
-60 Degrees celsius
Rated current In -
17.5 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection

Availability On Request

£4.15
