8WH20300AF01

Three-tier terminal 2.5 mm2; blue; width 5.2 mm

Manufacturer's No: 8WH2030-0AF01     Manufacturer: Siemens
Three-tier terminal 2.5 mm2; blue; width 5.2 mm

Availability On Request

£5.09
  • Terminal type: Spring-loaded
  • Configuration: Three-tier through-type
  • Wire size: 2.5 mm²
  • Color: Blue
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2030-0AF01
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Colour -
Blue
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre

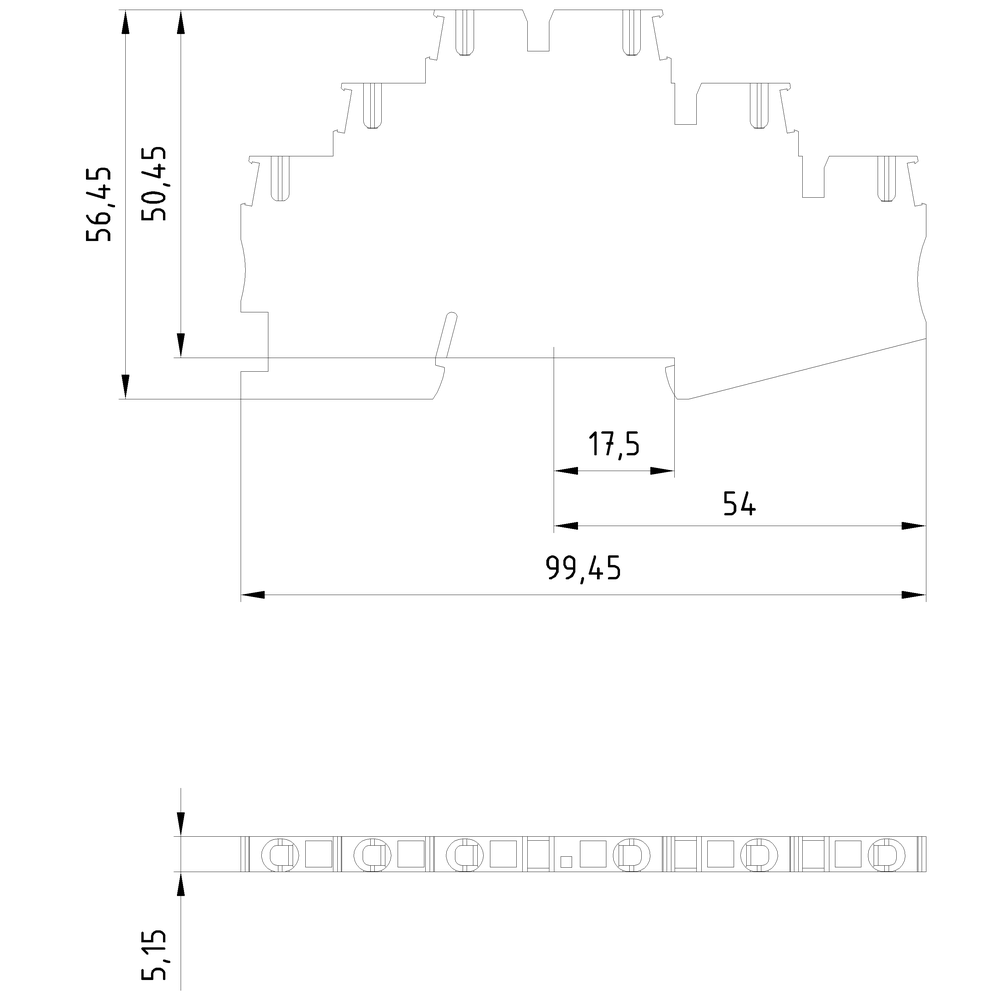

Depth -
58 Millimetre
Height -
99.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
3
Operating temperature -
-60 Degrees celsius
Rated current In -
24 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
5.2 Millimetre

Availability On Request

£5.09
