8WH20304EF00

Three-tier terminal 2.5 mm2 PE L N gray width 5.2 mm

Manufacturer's No: 8WH2030-4EF00     Manufacturer: Siemens
Three-tier terminal 2.5 mm2 PE L N gray width 5.2 mm

Availability On Request

£12.49
  • Terminal type: Spring-loaded
  • Configuration: Three-tier
  • Wire size: 2.5 mm²
  • Color: Gray
  • Suitable for PE/L/N connections
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2030-4EF00
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

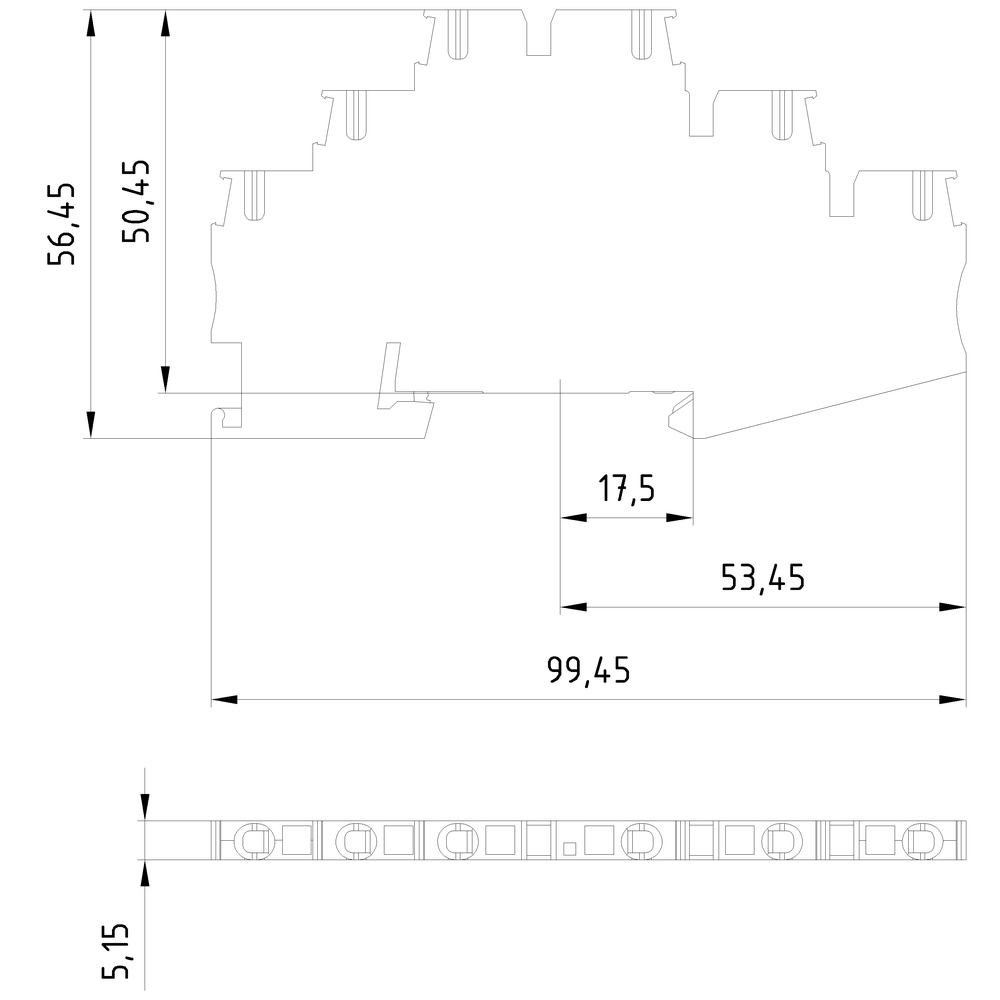

Technical Specification

Length -
99.5 Millimetre
Operation temperature -
55 Degrees celsius
Width/grid dimension -
5.2 Millimetre
Height at lowest possible mounting height -
58 Millimetre
Number of potentials -
3
Basic colour -
Grey
PE-function -
N function possible -
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
56.5 Millimetre
Explosion-tested version 'Ex e' -
Height -
99.48 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
3
Operating temperature -
-60 Degrees celsius
Rated current In -
22 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
5.2 Millimetre

Availability On Request

£12.49
