8WH20350AF00

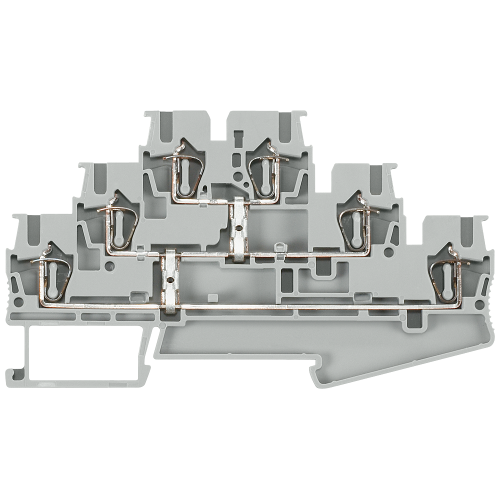

Three-tier terminal 2.5 mm2; with 1 potential for the 3L; gray; Width 5.2 mm

Manufacturer's No: 8WH2035-0AF00     Manufacturer: Siemens
Three-tier terminal 2.5 mm2; with 1 potential for the 3L; gray; Width 5.2 mm

Availability Available to order

£7.63
  • Terminal type: Spring-loaded
  • Three-tier design for equipotential bonding
  • Through-type terminal
  • Wire size: 2.5 mm²
  • Color: Gray
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2035-0AF00
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
N / N
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Length -
99.5 Millimetre
Operation temperature -
55 Degrees celsius
Width/grid dimension -
5.2 Millimetre
Height at lowest possible mounting height -
58 Millimetre
Number of potentials -
3
Basic colour -
Grey
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
56.5 Millimetre
Explosion-tested version 'Ex e' -
Height -
99.48 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Internally connected stages -
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
3
Operating temperature -
-60 Degrees celsius
Rated current In -
20 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
5.2 Millimetre

Availability Available to order

£7.63
