8WH20404LG00

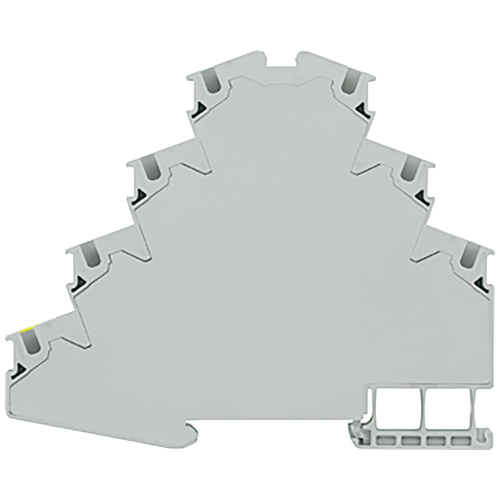

Four-tier motor terminal with spring-loaded connection, with protective conductor connection

Manufacturer's No: 8WH2040-4LG00     Manufacturer: Siemens
Four-tier motor terminal with spring-loaded connection, with protective conductor connection

Availability On Request

£16.47
  • Terminal type: Spring-loaded
  • Configuration: Four-tier
  • Conductor size: 2.5 mm²
  • Color: Gray
  • Material: PE/L/L/L
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2040-4LG00
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Length -
101 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
62 Millimetre
Height at lowest possible mounting height -
83.5 Millimetre
Connectable conductor cross section multi-wired -
6 Square millimetre
Connection position -
Above
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
82.1 Millimetre
Explosion-tested version 'Ex e' -
Height -
100.42 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
4
Operating temperature -
-60 Degrees celsius
Rated current In -
28 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection

Availability On Request

£16.47
