8WH21033BF07

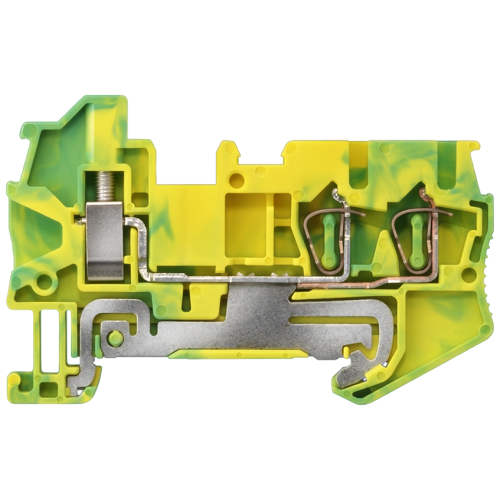

Hybrid PE terminal, screw connection and 2x spring-loaded connection

Manufacturer's No: 8WH2103-3BF07     Manufacturer: Siemens
Hybrid PE terminal, screw connection and 2x spring-loaded connection

Availability On Request

POA
  • Terminal type: Spring-loaded
  • Clamping points: 3
  • Hybrid PE terminal
  • Connections: 1x screw, 2x spring-loaded
  • Wire size: 2.5 mm²
  • Color: Green-yellow
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
8WH2103-3BF07
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

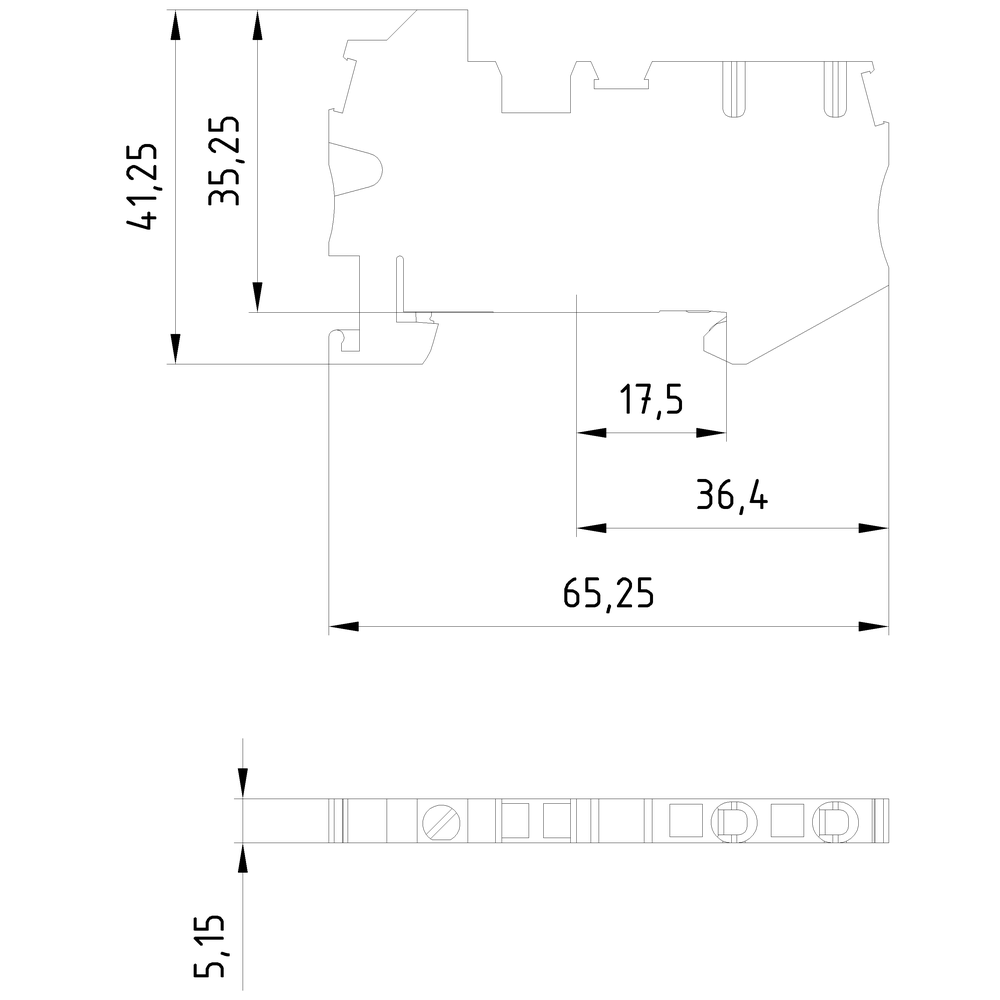

Technical Specification

Length -
65.3 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
5.2 Millimetre
Height at lowest possible mounting height -
42.8 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
41.25 Millimetre
Height -
65.28 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
3
Number of levels -
1
Operating temperature -
105 Degrees celsius
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Screw connection
Width -
5.15 Millimetre

Availability On Request

POA
