8WH30006AE00

Isolating terminal with quick-connect technology, cross-section: 0.25-1.5 mm2, width: 5.2 mm

Manufacturer's No: 8WH3000-6AE00     Manufacturer: Siemens
Isolating terminal with quick-connect technology, cross-section: 0.25-1.5 mm2, width: 5.2 mm

Availability On Request

POA
  • Terminal type: Quick-connect
  • Isolating terminal
  • Wire size: 1.5 mm²
  • Color: Gray


Product

Manufacturer Material ID -
8WH3000-6AE00
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Colour -
Grey
Connectable conductor cross section fine-strand without cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section solid-core -
0.25 Square millimetre

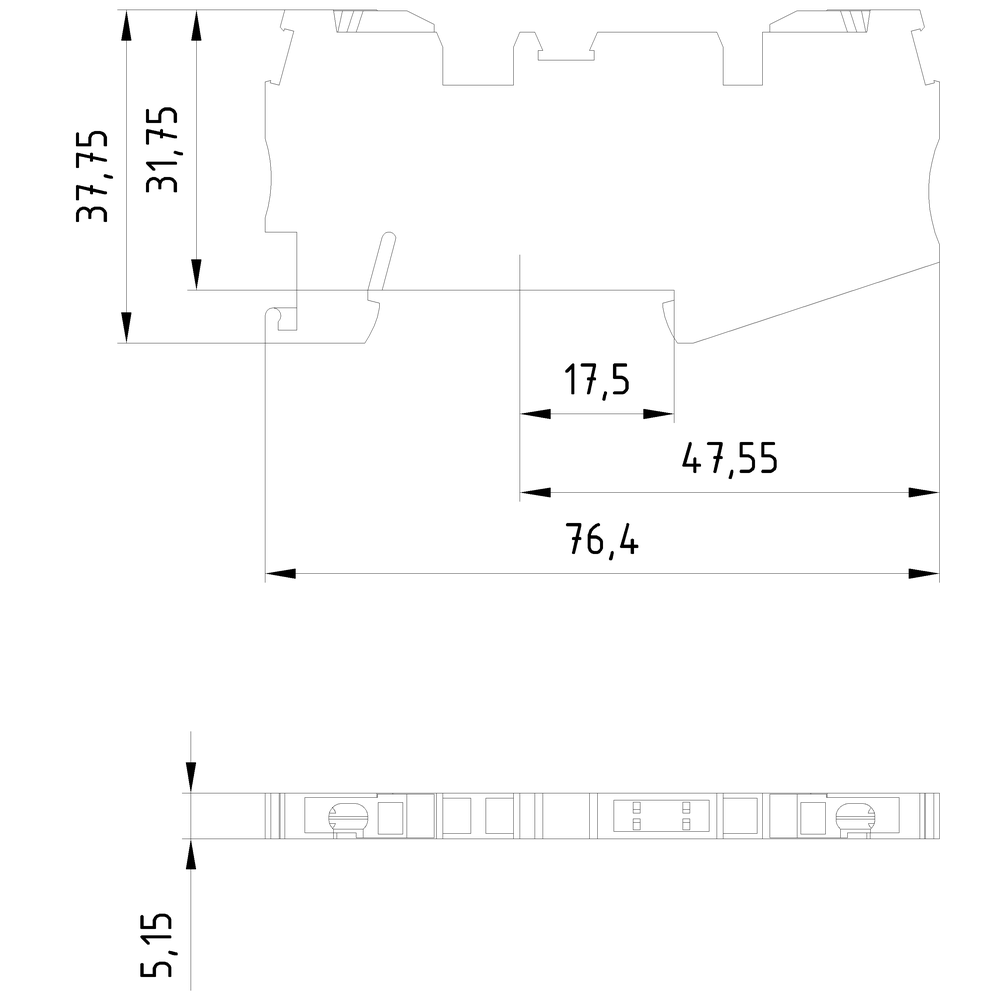

Depth -
39.3 Millimetre
Height -
76.43 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-105 Degrees celsius
Rated current In -
17.5 Ampere
Rated voltage -
400 Volt
Type of cross disconnection -
None
Type of electrical connection 1 -
Insulation displacement connection
Type of slitting -
Other
Width -
5.15 Millimetre

Availability On Request

POA
