8WH30030CE07

PE terminal with quick-connect technology, 3 terminals

Manufacturer's No: 8WH3003-0CE07     Manufacturer: Siemens
PE terminal with quick-connect technology, 3 terminals

Availability On Request

POA
  • Terminal type: Quick-connect
  • Clamping points: 3
  • Terminal material: PE/PEN
  • Wire size: 1.5 mm²
  • Color: Green-yellow


Product

Manufacturer Material ID -
8WH3003-0CE07
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Closing plate required -
Colour -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section multi-wired -
0.25 Square millimetre
Connectable conductor cross section solid-core -
0.25 Square millimetre

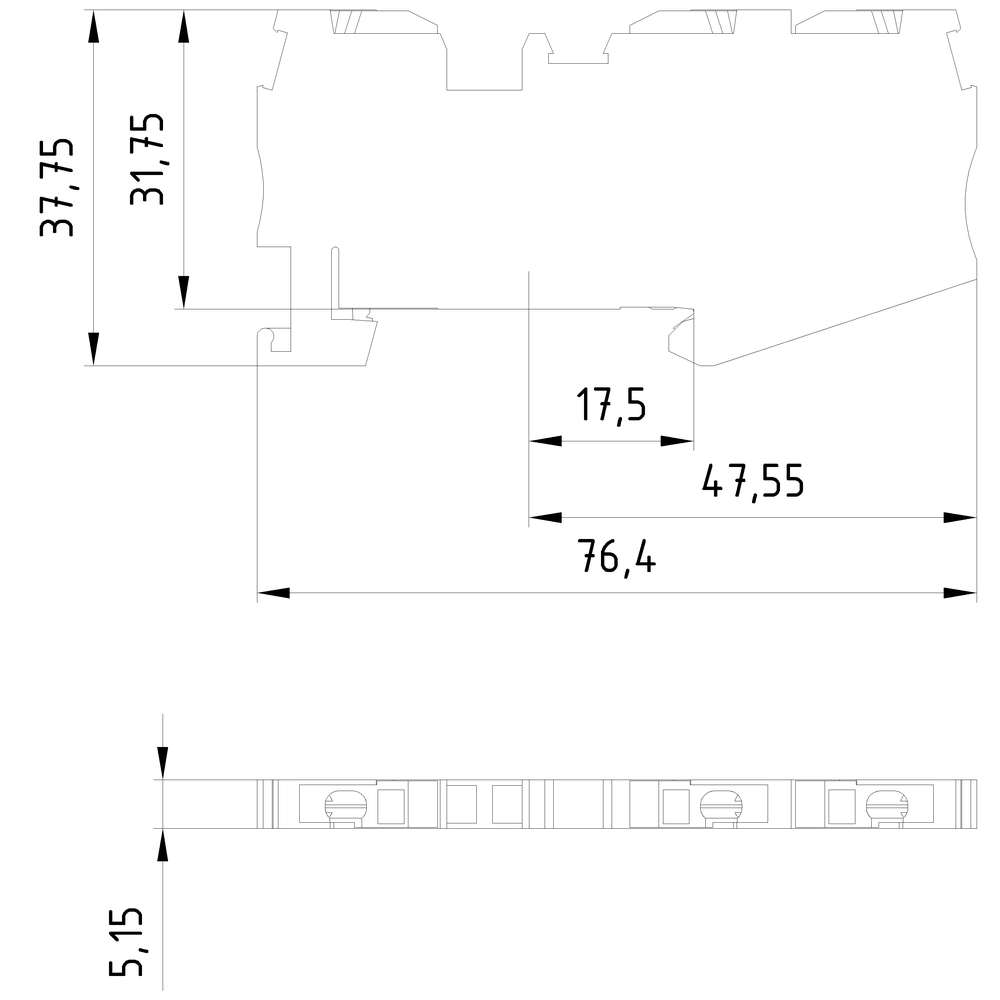

Depth -
37.75 Millimetre
Height -
76.43 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
3
Number of levels -
1
Operating temperature -
105 Degrees celsius
Type of electrical connection 1 -
Plug-in connection
Width -
5.15 Millimetre

Availability On Request

POA
