8WH30040AE01

Through-type terminal with quick-connect technology, 4 terminals

Manufacturer's No: 8WH3004-0AE01     Manufacturer: Siemens
Through-type terminal with quick-connect technology, 4 terminals

Availability On Request

POA
  • Terminal type: Through-type
  • Quick-connect with 4 clamping points
  • Wire size: 1.5 mm²
  • Color: Blue


Product

Manufacturer Material ID -
8WH3004-0AE01
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Closing plate required -
Colour -
Blue
Connectable conductor cross section fine-strand without cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section solid-core -
0.25 Square millimetre

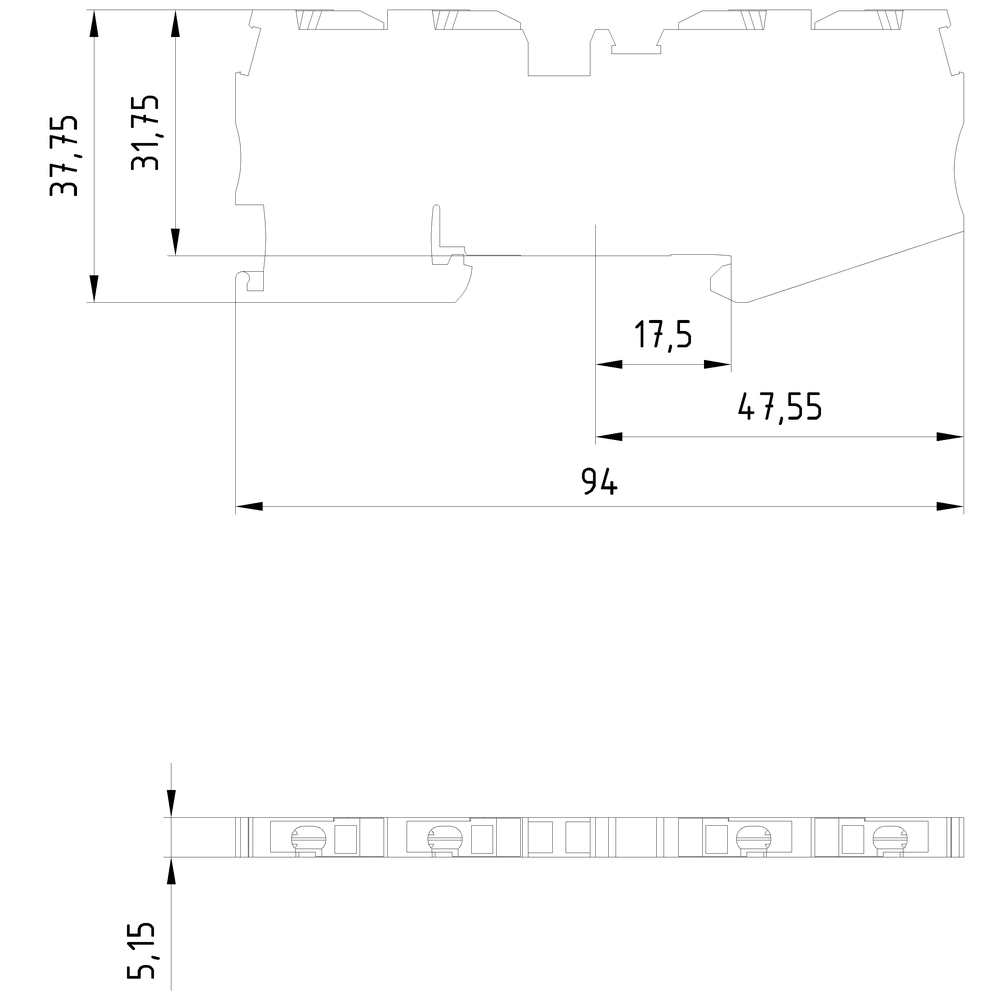

Depth -
37.8 Millimetre
Explosion-tested version 'Ex e' -
Height -
94.03 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
4
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
17.5 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Plug-in connection
Type of electrical connection 2 -
Plug-in connection

Availability On Request

POA
