8WH30200CE07

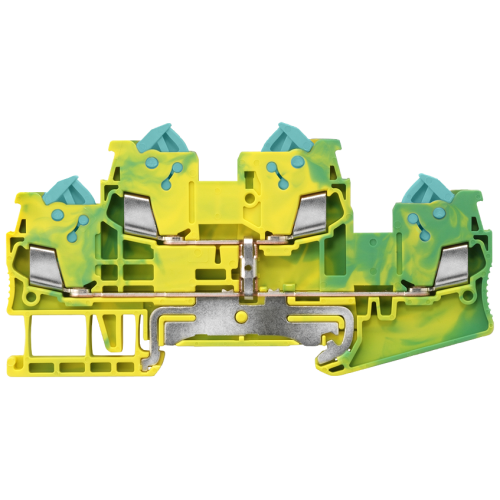

Two-tier PE terminal with quick-connect technology, cross-section: 0.25-1.5 mm2

Manufacturer's No: 8WH3020-0CE07     Manufacturer: Siemens
Two-tier PE terminal with quick-connect technology, cross-section: 0.25-1.5 mm2

Availability On Request

POA
  • Terminal type: Quick-connect
  • Two-tier design
  • Conductor size: 1.5 mm²
  • Terminal color: Green-yellow
  • Suitable for PE/PEN terminals


Product

Manufacturer Material ID -
8WH3020-0CE07
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Closing plate required -
Colour -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section multi-wired -
0.25 Square millimetre
Connectable conductor cross section solid-core -
0.25 Square millimetre

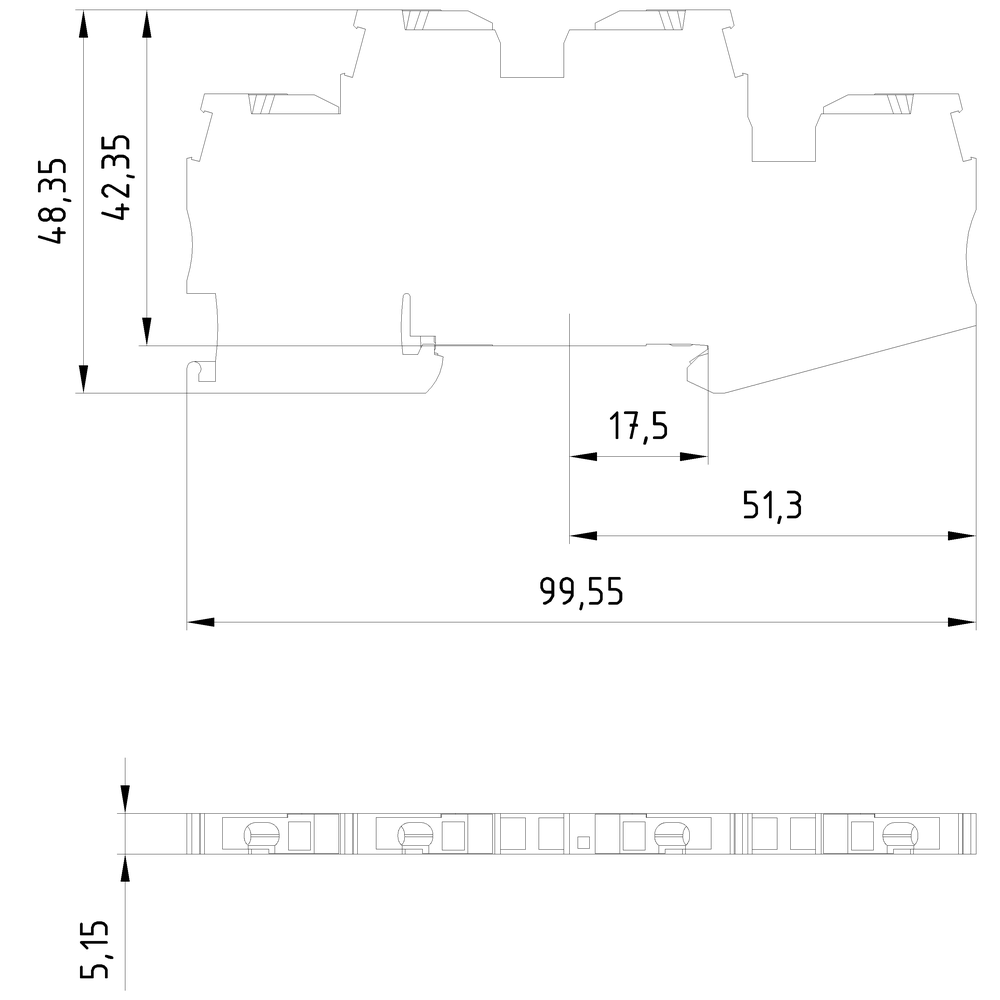

Depth -
48.35 Millimetre
Height -
99.58 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
2
Operating temperature -
105 Degrees celsius
Type of electrical connection 1 -
Plug-in connection
Width -
5.15 Millimetre
