8WH31002DF00

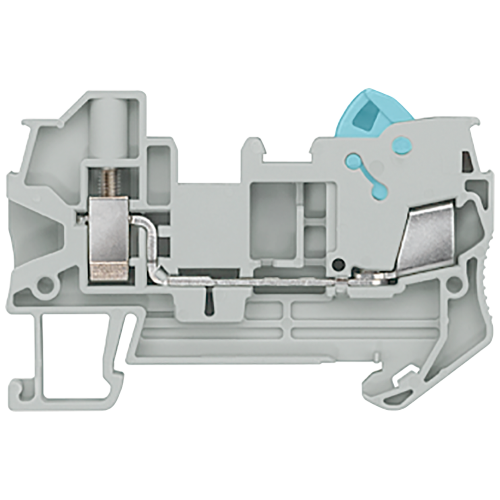

Hybrid through-type terminals with quick-connect technology and screw connection

Manufacturer's No: 8WH3100-2DF00     Manufacturer: Siemens
Hybrid through-type terminals with quick-connect technology and screw connection

Availability On Request

£1.87
  • Terminal type: Hybrid through-type
  • Connection types: 1x screw-type, 1x quick-connect
  • Wire size: 2.5 mm²
  • Color: Gray


Product

Manufacturer Material ID -
8WH3100-2DF00
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre

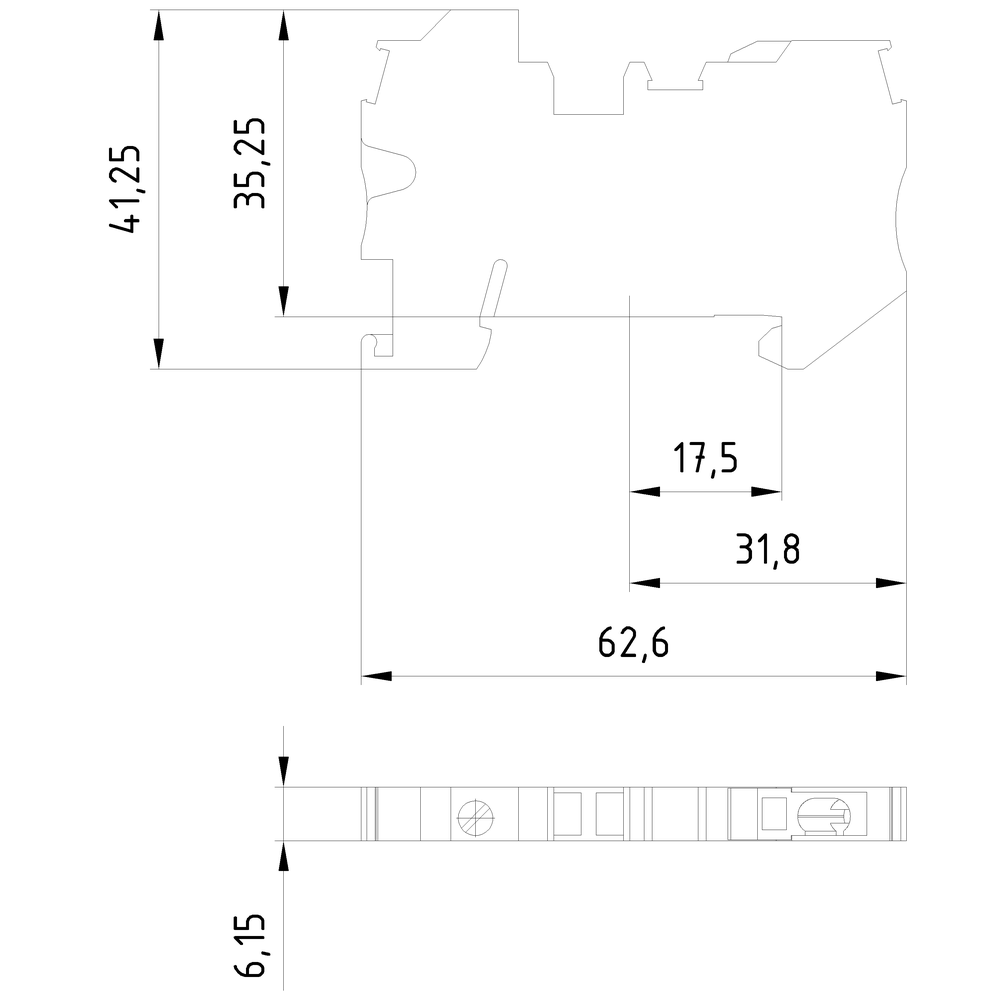

Depth -
41.3 Millimetre
Explosion-tested version 'Ex e' -
Height -
62.63 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
24 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Plug-in connection
Type of electrical connection 2 -
Screw connection

Availability On Request

£1.87
