8WH50000AF01

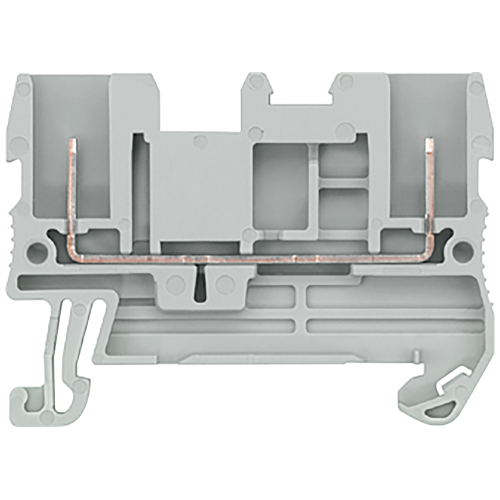

Through-type terminal, plug-in connection at both ends, Cross-section 0.08-2.5 mm2, Width: 5.2mm, Co

Manufacturer's No: 8WH5000-0AF01     Manufacturer: Siemens
Through-type terminal, plug-in connection at both ends, Cross-section 0.08-2.5 mm2, Width: 5.2mm, Co

Availability On Request

POA
  • Terminal type: Through-type
  • Connection type: Combination
  • Wire size: 2.5 mm²
  • Color: Blue


Product

Manufacturer Material ID -
8WH5000-0AF01
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
N / N
Minimum Order Quantity -
50
UNSPSC -
39121410

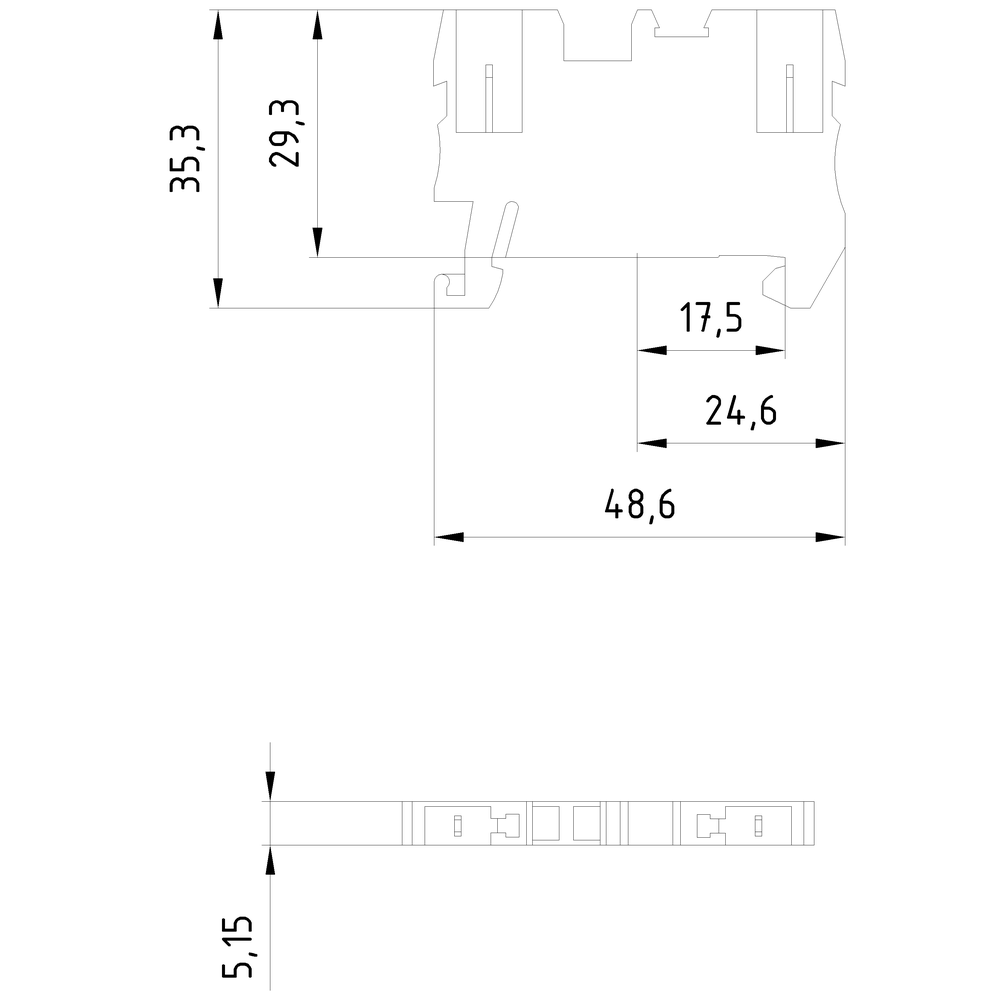

Technical Specification

Length -
48.5 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
5.2 Millimetre
Height at lowest possible mounting height -
36.5 Millimetre
Connection position -
Above
Connectable conductor cross section multi-wired -
2.5 Square millimetre
Closing plate required -
Colour -
Blue
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
35.3 Millimetre
Height -
48.73 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
24 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
