8WH51002KG00

Hybrid through-type terminal, plug-in and spring-loaded connection, cross-section 0.08-4 mm2

Manufacturer's No: 8WH5100-2KG00     Manufacturer: Siemens
Hybrid through-type terminal, plug-in and spring-loaded connection, cross-section 0.08-4 mm2

Availability On Request

POA
  • Terminal type: Combination connection
  • Connection type: Hybrid
  • Spring-loaded plug-in: 1x 4 mm²
  • Combination plug-in: 1x 4 mm²
  • Color: Gray


Product

Manufacturer Material ID -
8WH5100-2KG00
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

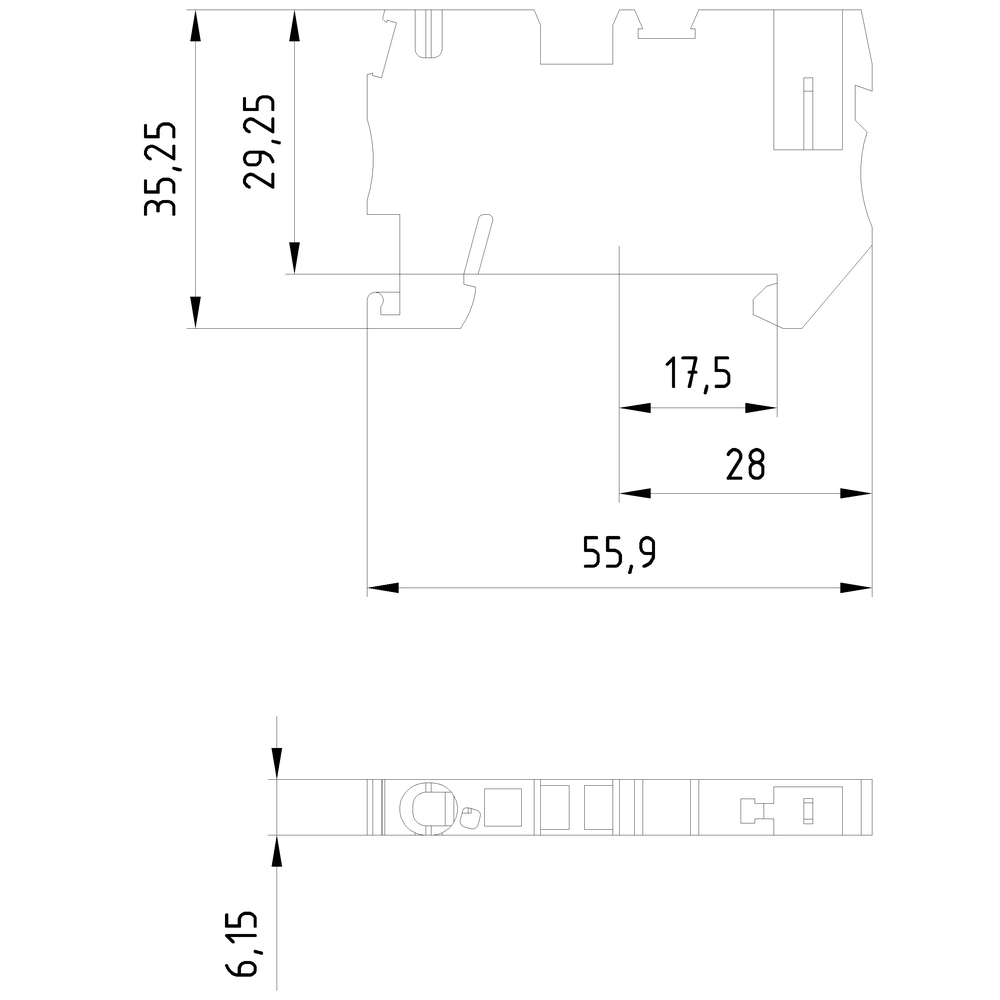

Technical Specification

Length -
55.9 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
5.2 Millimetre
Height at lowest possible mounting height -
36.5 Millimetre
Connectable conductor cross section multi-wired -
6 Square millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
35.3 Millimetre
Height -
55.93 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
32 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
