8WH60000AG00

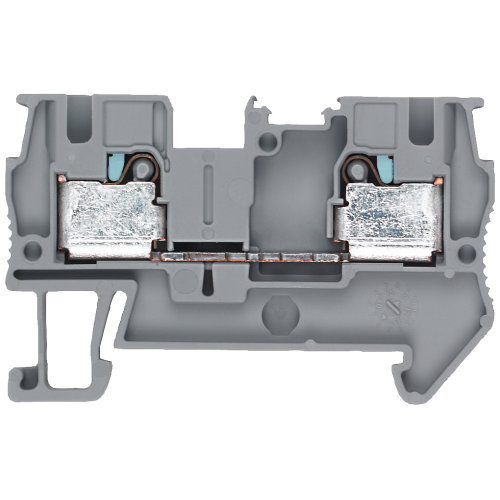

Through-type terminals 4 mm2, 6.2 mm wide gray

Manufacturer's No: 8WH6000-0AG00     Manufacturer: Siemens
Through-type terminals 4 mm2, 6.2 mm wide gray

Availability On Request

£1.48
  • Terminal type: iPo plug-in terminal
  • Connection type: Through-type
  • Wire size: 4 mm²
  • Color: Gray


Product

Manufacturer Material ID -
8WH6000-0AG00
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Length -
56 Millimetre
Operation temperature -
55 Degrees celsius
Width/grid dimension -
6.2 Millimetre
Height at lowest possible mounting height -
36.5 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.2 Square millimetre
Depth -
35.3 Millimetre
Explosion-tested version 'Ex e' -
Height -
55.93 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
32 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Plug-in connection
Type of electrical connection 2 -
Other
Width -
6.2 Millimetre

Availability On Request

£1.48
