8WH60000AS00

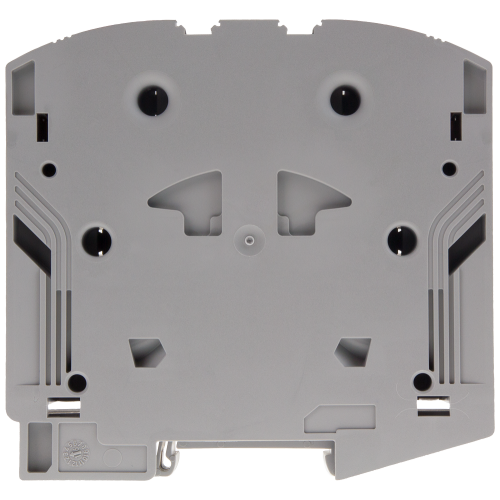

Through-type terminal, 150 mm2 iPo plug-in terminal gray

Manufacturer's No: 8WH6000-0AS00     Manufacturer: Siemens
Through-type terminal, 150 mm2 iPo plug-in terminal gray

Availability On Request

£51.30
  • Terminal type: iPo plug-in terminal
  • Connection type: Through-type
  • Wire size capacity: 150 mm²
  • Color: Gray


Product

Manufacturer Material ID -
8WH6000-0AS00
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
50 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
50 Square millimetre
Connectable conductor cross section multi-wired -
95 Square millimetre
Connectable conductor cross section solid-core -
50 Square millimetre
Depth -
116.4 Millimetre
Explosion-tested version 'Ex e' -
Height -
116.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
309 Ampere
Rated voltage -
1500 Volt
Type of electrical connection 1 -
Plug clamp connection
Type of electrical connection 2 -
Plug clamp connection
Width -
31 Millimetre

Availability On Request

£51.30
