8WH60000CM07

PE terminal 35 mm2 IPO connection terminal width 16 mm yellow-green, both sides

Manufacturer's No: 8WH6000-0CM07     Manufacturer: Siemens
PE terminal 35 mm2 IPO connection terminal width 16 mm yellow-green, both sides

Availability On Request

£26.60
  • Terminal type: iPo plug-in
  • Conductor size: 35 mm²
  • Color: Green-yellow
  • Additional terminals: PE/PEN terminal


Product

Manufacturer Material ID -
8WH6000-0CM07
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Colour -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
2.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
2.5 Square millimetre
Connectable conductor cross section multi-wired -
2.5 Square millimetre
Connectable conductor cross section solid-core -
2.5 Square millimetre

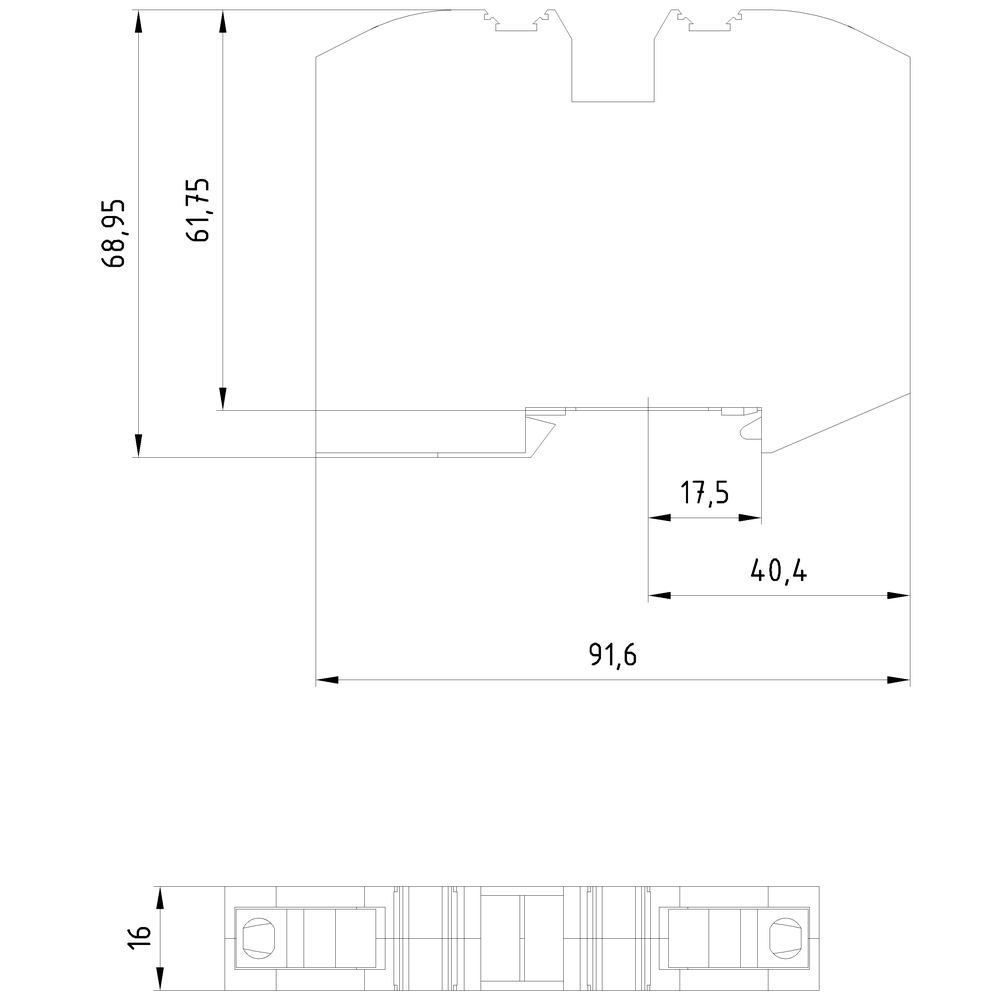

Depth -
68.95 Millimetre
Height -
91.6 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Type of electrical connection 1 -
Other
Type of electrical connection 2 -
Plug clamp connection
Width -
15.61 Millimetre

Availability On Request

£26.60
