8WH60010AF01

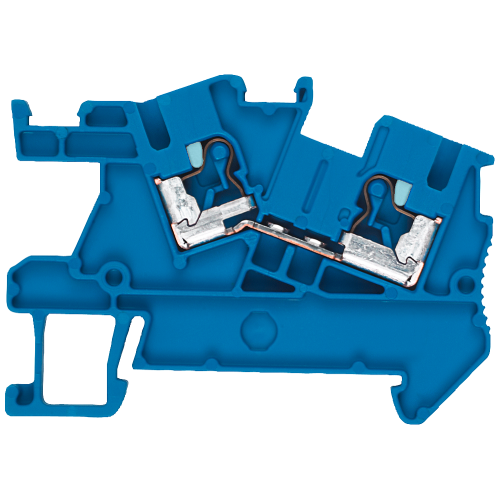

Terminal, iPo plug-in connection, installation terminal, through-type terminal, 2.5 mm², blue

Manufacturer's No: 8WH6001-0AF01     Manufacturer: Siemens
Terminal, iPo plug-in connection, installation terminal, through-type terminal, 2.5 mm², blue

Availability On Request

£1.18
  • Terminal type: Through-type
  • Connection type: Plug-in
  • Installation type: IP20
  • Wire size: 2.5 mm²
  • Color: Blue


Product

Manufacturer Material ID -
8WH6001-0AF01
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Closing plate required -
Colour -
Blue
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Connectable conductor cross section solid-core -
0.14 Square millimetre
Depth -
42.5 Millimetre
Explosion-tested version 'Ex e' -
Height -
42.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
24 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Plug clamp connection
Type of electrical connection 2 -
Plug clamp connection
Width -
5.15 Millimetre

Availability On Request

£1.18
