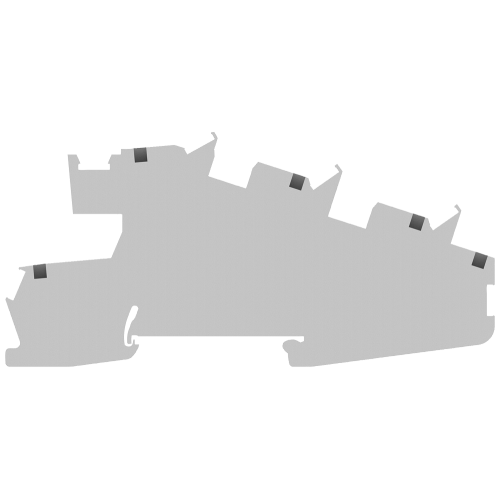

8WH60014EF00

Installation terminal PE, L, N 2.5 mm2, 5.2 mm width gray

Manufacturer's No: 8WH6001-4EF00     Manufacturer: Siemens
Installation terminal PE, L, N 2.5 mm2, 5.2 mm width gray

Availability On Request

£4.30
  • Terminal type: iPo plug-in
  • Installation terminal for PE/L/N
  • Wire size: 2.5 mm²
  • Color: Gray


Product

Manufacturer Material ID -
8WH6001-4EF00
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Length -
101 Millimetre
Operation temperature -
55 Degrees celsius
Width/grid dimension -
5.2 Millimetre
Height at lowest possible mounting height -
50.5 Millimetre
Connection position -
Above
Basic colour -
Grey
Closing plate required -
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Connectable conductor cross section solid-core -
0.14 Square millimetre
Depth -
48.7 Millimetre
Height -
100.9 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
Other
Number of potentials -
2
Operating temperature -
-60 Degrees celsius
PE-function -
Rated current In -
24 Ampere
Rated voltage -
400 Volt
Type of electrical connection 1 -
Other
Type of electrical connection 2 -
Other
Width -
5.15 Millimetre

Availability On Request

£4.30
