8WH60014FF00

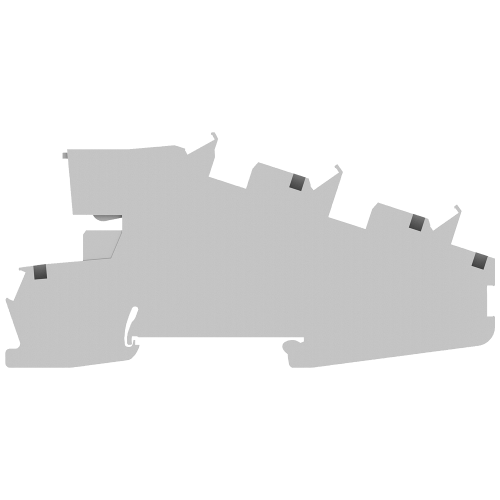

Installation terminal PE, L, NT 2.5 mm2, 5.2 mm width gray

Manufacturer's No: 8WH6001-4FF00     Manufacturer: Siemens
Installation terminal PE, L, NT 2.5 mm2, 5.2 mm width gray

Availability On Request

£5.01
  • Terminal type: iPo plug-in
  • Installation terminal: PE/L/NT
  • Wire size: 2.5 mm²
  • Color: Gray


Product

Manufacturer Material ID -
8WH6001-4FF00
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Basic colour -
Grey
Closing plate required -
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Connectable conductor cross section solid-core -
0.14 Square millimetre
Depth -
48.7 Millimetre
Height -
100.9 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
Other
N function possible -
Number of potentials -
2
Operating temperature -
-60 Degrees celsius
PE-function -
Rated current In -
24 Ampere
Rated voltage -
400 Volt
Type of electrical connection 1 -
Other
Type of electrical connection 2 -
Other
Width -
5.15 Millimetre
With N-disconnect slide -

Availability On Request

£5.01
