8WH60046CF00

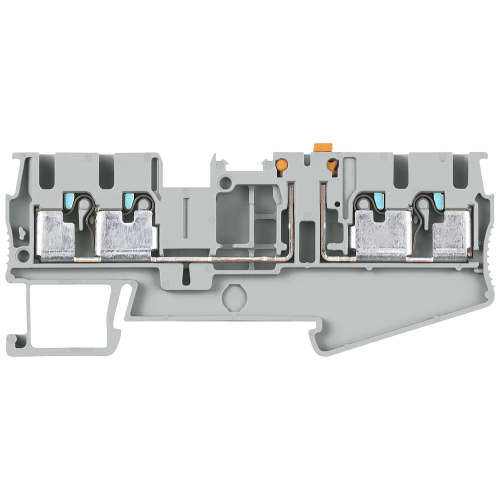

IPO terminals, isolating terminal

Manufacturer's No: 8WH6004-6CF00     Manufacturer: Siemens
IPO terminals, isolating terminal

Availability On Request

£3.61
  • Terminal type: iPo plug-in terminal
  • Isolating terminal
  • Wire size: 2.5 mm²
  • Color: Gray


Product

Manufacturer Material ID -
8WH6004-6CF00
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
1.5 Square millimetre
Connectable conductor cross section solid-core -
0.14 Square millimetre
Depth -
36.5 Millimetre
Height -
84.03 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
4
Number of levels -
1
Operating temperature -
-105 Degrees celsius
Rated current In -
20 Ampere
Rated voltage -
400 Volt
Type of cross disconnection -
None
Type of electrical connection 1 -
Other
Type of slitting -
Pluggable
Width -
5.15 Millimetre

Availability On Request

£3.61
