8WH60200AG01

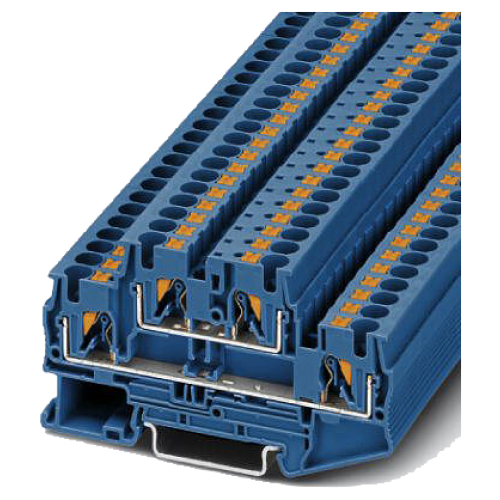

Two-tier terminal 4 mm2, 6.2 mm wide, blue

Manufacturer's No: 8WH6020-0AG01     Manufacturer: Siemens
Two-tier terminal 4 mm2, 6.2 mm wide, blue

Availability On Request

£3.27
  • Terminal type: iPo plug-in terminal
  • Configuration: Two-tier through-type
  • Wire size: 4 mm²
  • Color: Blue


Product

Manufacturer Material ID -
8WH6020-0AG01
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Closing plate required -
Colour -
Blue
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.2 Square millimetre
Depth -
45.9 Millimetre
Explosion-tested version 'Ex e' -
Height -
83.68 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
2
Operating temperature -
-60 Degrees celsius
Rated current In -
28 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Plug clamp connection
Type of electrical connection 2 -
Plug clamp connection
Width -
6.2 Millimetre

Availability On Request

£3.27
