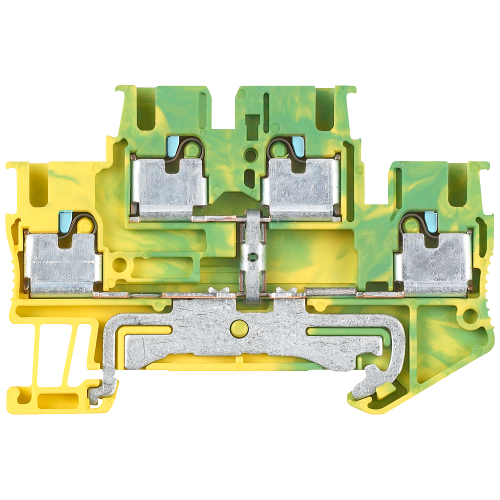

8WH60200CF07

IPO terminals, two-tier terminal

Manufacturer's No: 8WH6020-0CF07     Manufacturer: Siemens
IPO terminals, two-tier terminal

Availability On Request

£8.53
  • Terminal type: iPo plug-in
  • Two-tier design
  • PE/PEN terminal
  • Wire size: 2.5 mm²
  • Color: Green-yellow


Product

Manufacturer Material ID -
8WH6020-0CF07
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Closing plate required -
Colour -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Connectable conductor cross section solid-core -
0.14 Square millimetre
Depth -
45.85 Millimetre
Height -
68.18 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
4
Number of levels -
2
Operating temperature -
105 Degrees celsius
Type of electrical connection 1 -
Other
Type of electrical connection 2 -
Other
Width -
5.15 Millimetre

Availability On Request

£8.53
