8WH60200CG07

PE two-tier terminal 4 mm2, 6.2 mm wide, gray

Manufacturer's No: 8WH6020-0CG07     Manufacturer: Siemens
PE two-tier terminal 4 mm2, 6.2 mm wide, gray

Availability On Request

£10.45
  • Terminal type: iPo plug-in terminal
  • Configuration: Two-tier
  • Conductor size: 4 mm²
  • Grounding: PE/PEN terminal
  • Color: Green-yellow


Product

Manufacturer Material ID -
8WH6020-0CG07
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Closing plate required -
Colour -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.2 Square millimetre

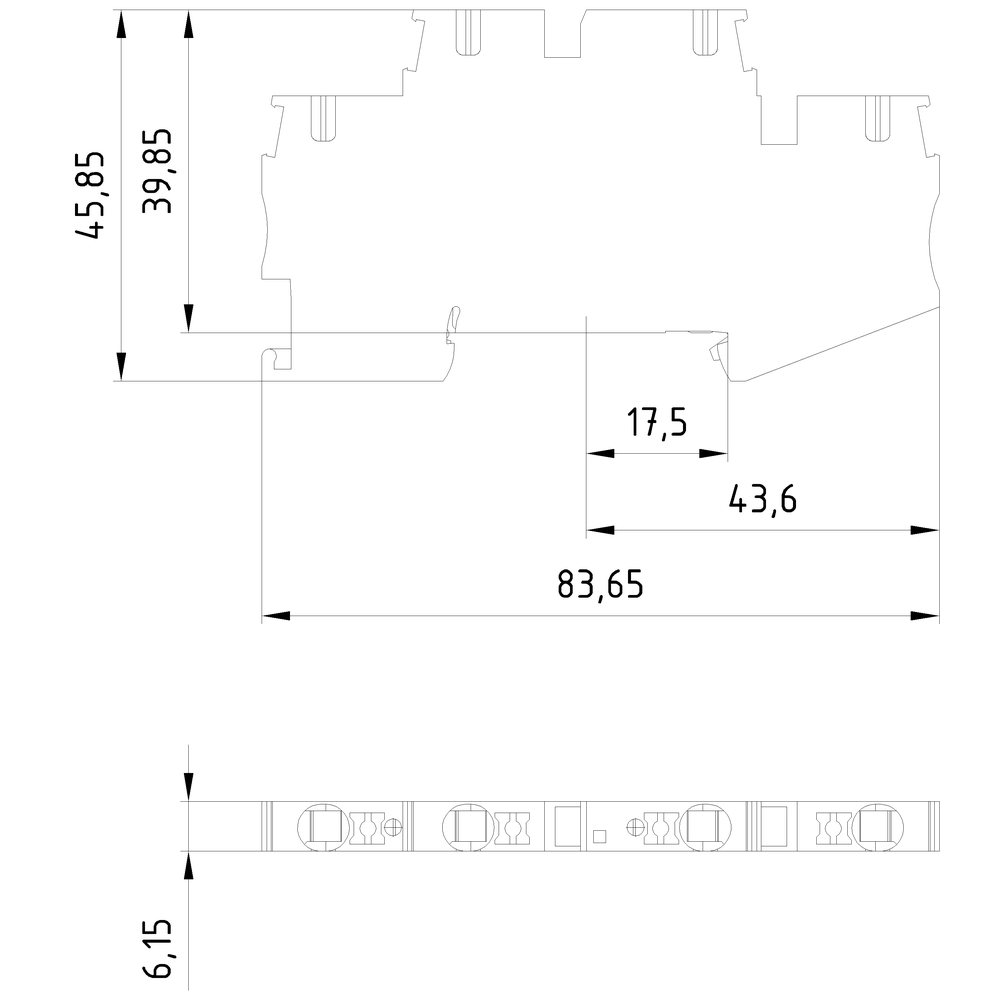

Depth -
45.86 Millimetre
Height -
83.68 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
4
Number of levels -
2
Operating temperature -
105 Degrees celsius
Type of electrical connection 1 -
Other
Type of electrical connection 2 -
Other
Width -
6.15 Millimetre

Availability On Request

£10.45
