8WH60250AF00

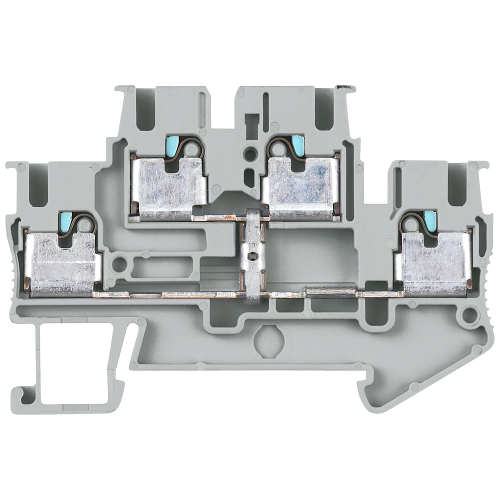

iPo terminals, two-tier terminal

Manufacturer's No: 8WH6025-0AF00     Manufacturer: Siemens
iPo terminals, two-tier terminal

Availability On Request

£6.08
  • Terminal type: Two-tier, through-type
  • Plug-in terminal for iPo
  • Equipped with equipotential bonding
  • Wire size: 2.5 mm²
  • Color: Gray


Product

Manufacturer Material ID -
8WH6025-0AF00
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Connectable conductor cross section solid-core -
0.14 Square millimetre
Depth -
45.9 Millimetre
Explosion-tested version 'Ex e' -
Height -
83.68 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Internally connected stages -
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
4
Number of levels -
2
Operating temperature -
-60 Degrees celsius
Rated current In -
22 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Plug clamp connection
Type of electrical connection 2 -
Plug clamp connection
Width -
5.2 Millimetre

Availability On Request

£6.08
