8WH90203PA00

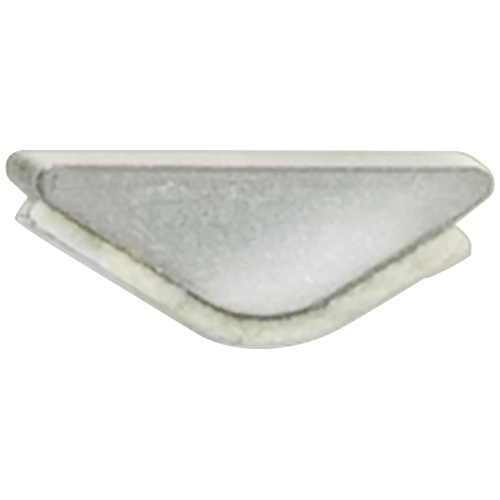

Insertion profile, for 150-240 mm2 terminals, evens out the prismatic sleeve base

Manufacturer's No: 8WH9020-3PA00     Manufacturer: Siemens
Insertion profile, for 150-240 mm2 terminals, evens out the prismatic sleeve base

Availability Back Order

£1.85
  • Insulation profile designed for 150-240 mm² terminals
  • Evens out prismatic sleeve base for flat conductors


Product

Manufacturer Material ID -
8WH9020-3PA00
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Operation temperature -
-25 Degrees celsius
Inflammability class of insulation material acc. with UL94 -
Other
Height at lowest possible mounting height -
81.5 Millimetre
Type of electrical connection 1 -
Other
Type of electrical connection 2 -
Other
Number of clamp positions per level -
0
Connectable conductor cross section fine-strand with cable end sleeve -
70 Square millimetre
Material insulation body -
Other
Connection position -
Sideways
Colour -
Other
Insulated -
Model -
Other
Mounting method -
Other

Availability Back Order

£1.85
