2CLA939900A1001

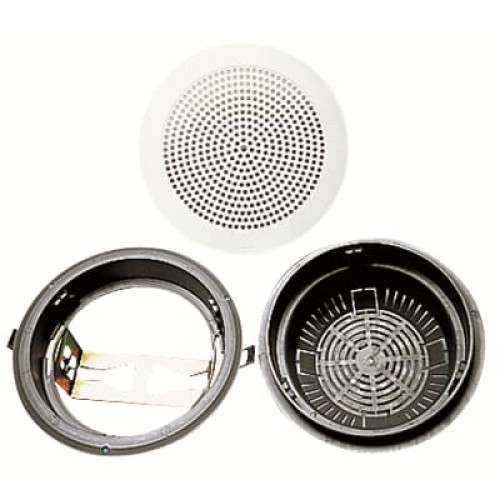

Sound device Device connection box (round/square) Single Black - Zenit

Manufacturer's No: 9399     Manufacturer: ABB
Sound device Device connection box (round/square) Single Black - Zenit

Availability On Request

£5.63
  • Sound device connection box for Zenit 9329.1 loudspeaker
  • Designed for flush-mounted assembly
  • Drilling measurements: 174 mm
  • Mounting depth: 84 mm


Product

Manufacturer Material ID -
9399
Net Weight -
1.48kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
ES
UNSPSC -
43201503

Technical Specification

Diameter -
- Millimetre
Internal depth -
- Millimetre
Cover attachment -
UN
Number of poles of the clamp -
-
Degree of protection (NEMA) -
UN
Number of inlets -
2
Mounting switching equipment -
Spread
Suitable for cable diameter -
0 Millimetre
Degree of protection (IP) -
IP20
For tube diameter -
16 mm
Inlet from the rear -
Equipped with -
None
Max. conductor cross section -
8 Square millimetre
Special application -
None
Nozzle -
None
Cover model -
None
Circuit integrity -
E 60
Colour -
Black
Construction type -
Device connection box (round/square)
Degree of protection (IP rating) -
IP20
Depth -
73 Millimetre
Device mounting method -
Spread
Entry point on rear -
For conduit/tube diameter -
16 mm
For number of electric fittings -
1
Halogen free -
Housing feed-through by break-out opening -
Length -
73 Millimetre
Material -
Plastic
Model -
Single
Mounting method -
Flush mounted
Number of entry points -
2
Number of included spouts -
0
Shape -
Round
Suitable for cable outer diameter -
0 Millimetre
Surface protection -
Untreated
Width -
62 Millimetre
ABB

Availability On Request

£5.63
