50138252

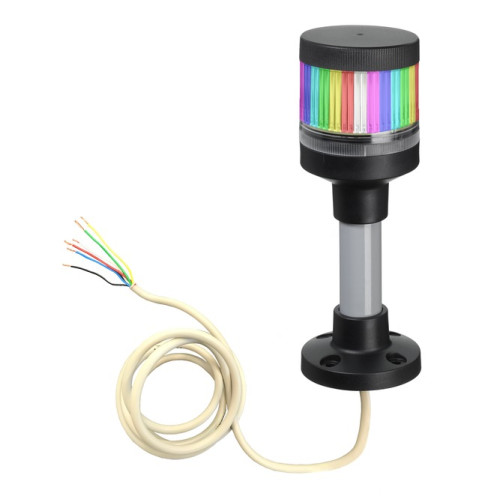

Signaling column Signaling: Optical; Current consumption, max.: 70 mA; Connection: Cable, soldered to lens / open end, 6 -wire, 1,

Manufacturer's No: A7-V1-MP1-DS-M7-T-100     Manufacturer: Leuze
Signaling column Signaling: Optical; Current consumption, max.: 70 mA; Connection: Cable, soldered to lens / open end, 6 -wire, 1,500 mm; Design: Cylindrical; Diameter: 70 mm; Illuminant: LED/24V; Le

Availability On Request

£73.00
  • Signaling: Optical
  • Current consumption: 70 mA
  • Connection: Cable, soldered to lens / open end, 6-wire, 1,500 mm
  • Design: Cylindrical, Diameter: 70 mm
  • Illuminant: LED/24V
  • Lens modules: 1 piece
  • Signal image: Continuous or flashing light
  • Angle of radiation: 360°
  • Operational controls: DIP switch
  • Ambient temperature: -10 to 60 °C

Read more

  • Degree of protection: IP 66

Accessories



Product

Manufacturer Material ID -
A7-V1-MP1-DS-M7-T-100
Net Weight -
0.42kg

Additional Product Information

Commodity Code -
85318070
Country of Origin -
IN
UNSPSC -
39121528

Technical Specification

Colour -
UN
Function -
UN
Colour housing -
UN
Lamp type -
UN
Operating voltage at AC 50 Hz -
- Volt
Operating voltage at AC 60 Hz -
- Volt
Degree of protection (NEMA) -
UN
Voltage type -
DC
Degree of protection (IP) -
IP66
Rated operating voltage Ue -
24 Volt
Voltage type for actuating -
DC
Number of signal tower elements -
7
Thumbnail of product picture -
Continuous light function -
Degree of protection (IP rating) -
IP66
Depth -
203 Millimetre
Flashing light -
Operating voltage at DC -
24 Volt
Outer diameter -
70 Millimetre
Voltage type (operating voltage) -
DC
Leuze

Availability On Request

£73.00
