2TLA020051R5100

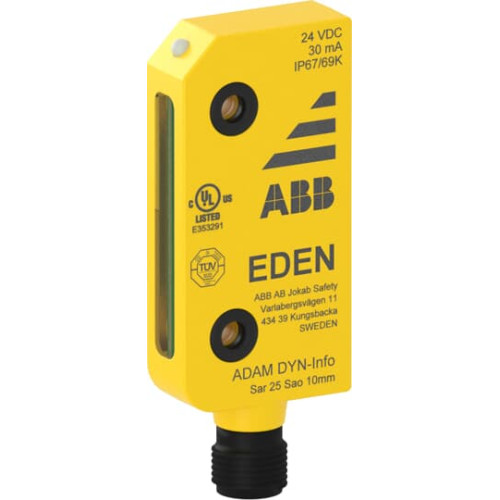

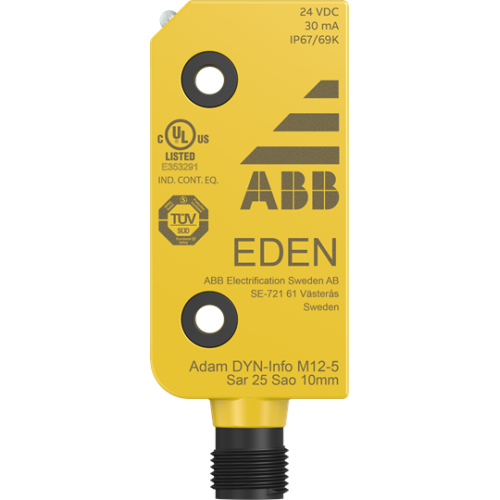

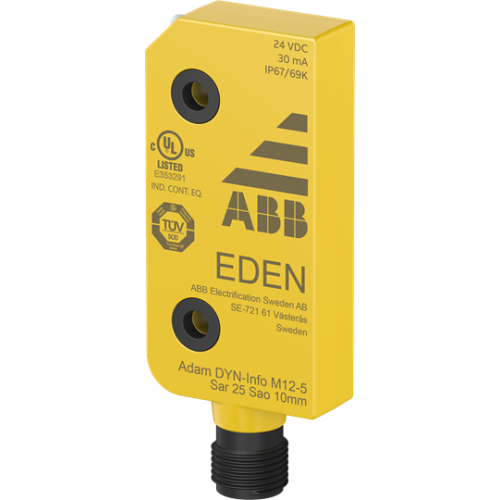

Adam DYN-Info M12-5 Sensor

Manufacturer's No: ADAM DYN-INFO M12-     Manufacturer: ABB
Adam DYN-Info M12-5 Sensor

Availability Back Order

£84.72
  • Adam DYN-Info M12-5 Sensor, Eden: non-contact safety sensor for interlocking doors and safe position monitoring
  • Features DYNlink signal and information output
  • Includes M12-5 male connector, 4 DA 1B distance plates, and 4 DA 2B distance rings
  • Detects Eva presence without mechanical contact to prevent wear
  • Compact size and 360° mounting capability for versatile applications
  • UL approved for use in US and Canada


Product

Manufacturer Material ID -
ADAM DYN-INFO M12-
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
8536508090
Country of Origin -
PL
Minimum Order Quantity -
1
UNSPSC -
39122200

Technical Specification

Min. output current -
- Milliampere
Diameter sensor -
- Millimetre
Degree of protection (NEMA) -
UN
Material housing -
Plastic
Number of protected semiconductor outputs -
1
Number of protected contact energized outputs -
0
Degree of protection (IP) -
Other
Category according to EN 954-1 -
4
Rated supply voltage at AC 50 Hz -
0 Volt
Rated supply voltage at AC 60 Hz -
0 Volt
Performance level acc. EN ISO 13849-1 -
Level e
Ambient temperature -
-40 Degrees celsius
Coating housing -
Uncoated
Construction type housing -
Special construction
Cross-/short circuit identification possible -
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
75.2 Millimetre
Housing material -
Plastic
Length of sensor -
12 Millimetre
Max. output current at protected output -
0.05 Milliampere
Mechanical mounting condition for sensor -
Not flat
Number of contact energized outputs with signalling function -
0
Number of semiconductor outputs with signalling function -
1
Performance level acc. to EN ISO 13849-1 -
Level e
Protected switch distance OFF -
25 Millimetre
Protected switch distance ON -
10 Millimetre
Rated supply voltage at DC -
24 Volt
SIL according to IEC 61508 -
3
Suitable for safety functions -
Switching distance -
15 Millimetre
Type of actuation -
Transponder
Type of electric connection -
Connector M12
Type of interface for safety communication -
Other
Type of switching output -
Other
Voltage type -
DC
Width sensor -
30 Millimetre
With status indication -
ABB
